DIY LED utilizing existing drivers

  • Thread starter OldSmokie76
  • Start date
  • Tagged users None
OldSmokie76

OldSmokie76

Any help or push in the right direction is much appreciated. Any led builders out there? My goal is to use some existing drivers from a couple blurples to power some new tech. Either cobs or strips. Ultimately, this diy led will be inside a cabinet grow. If i can only get a small veg light together, so be it. Here's what I'm working with.

The donors: 1200w off brand led.
300w off brand led.

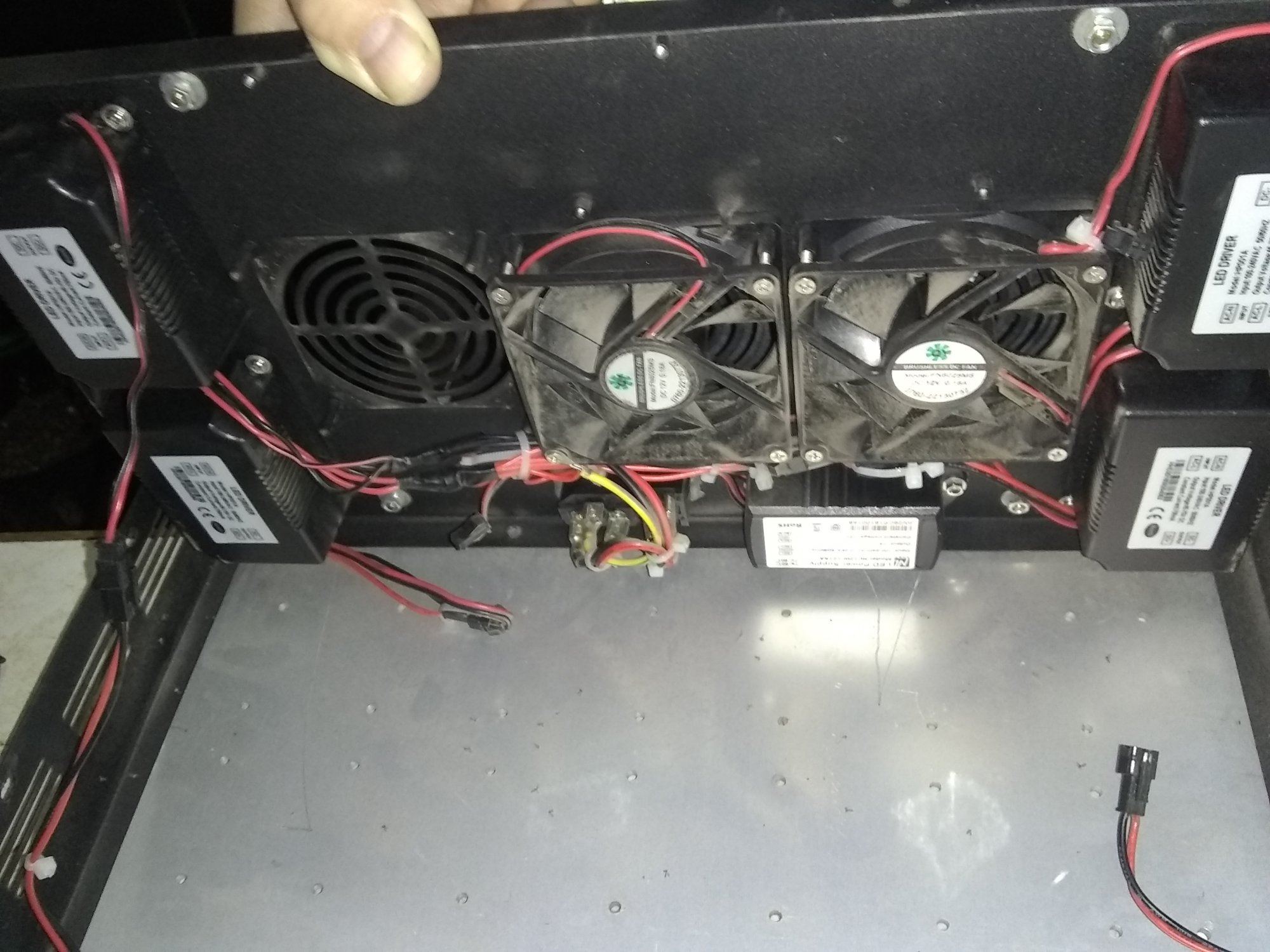

Drivers are pictured:

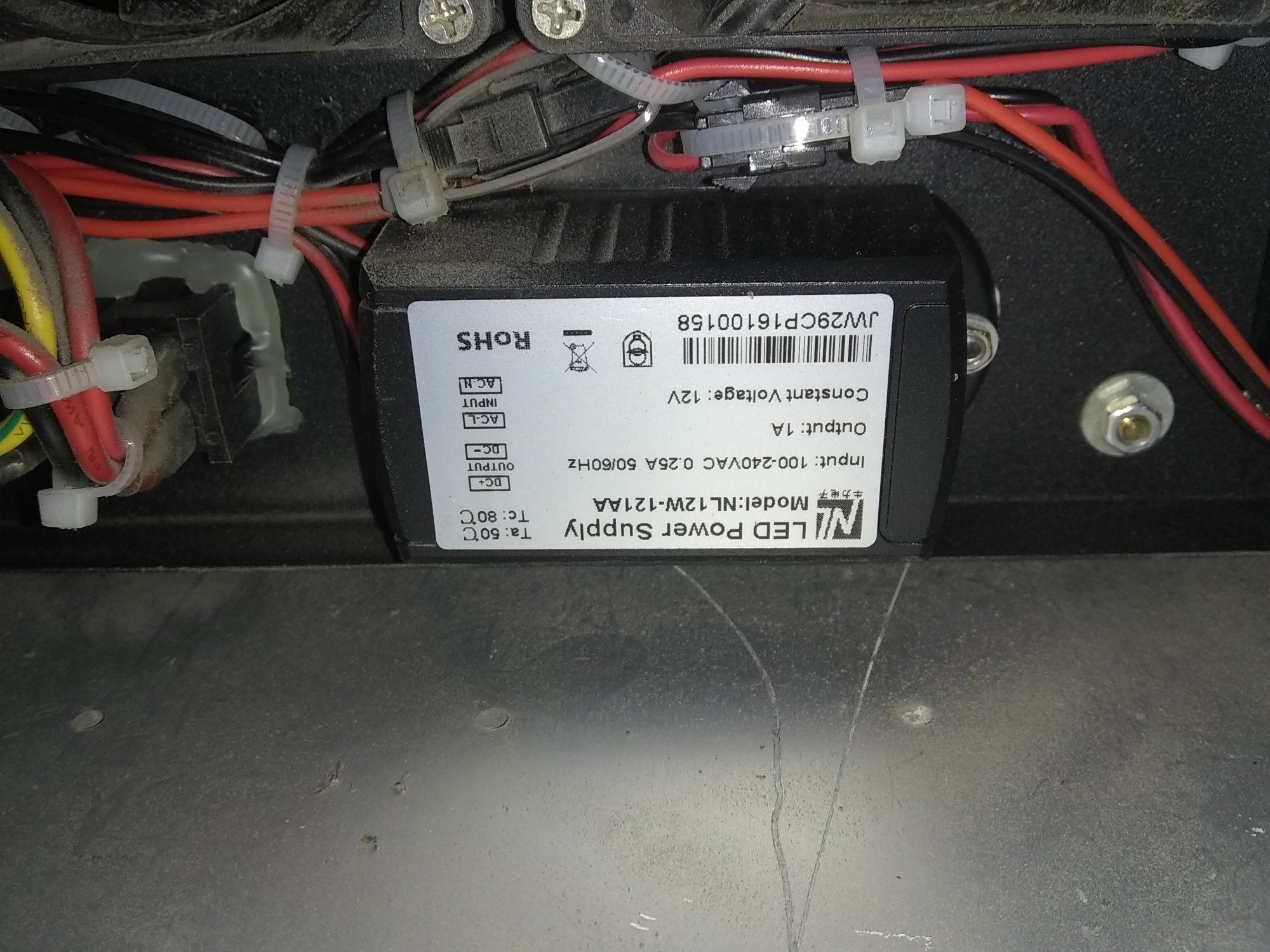

4 ea in 1200w plus a power supply

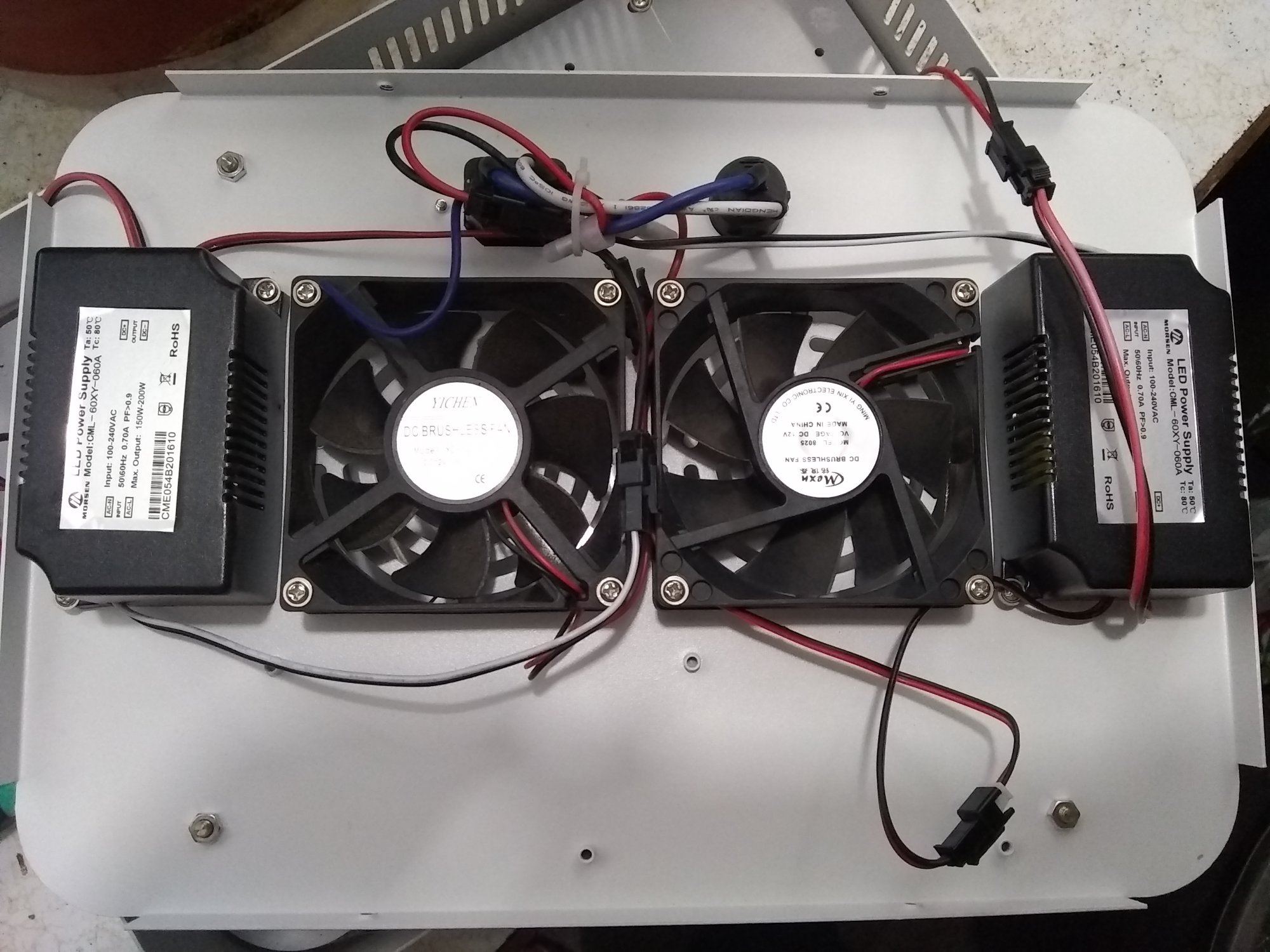

2 ea in the 300w

Any assistance in this project would be greatly accepted.

BigCube

BigCube

If you dont have a VOM, you shouldn't even think of building your own fixture from spare parts.

What are you trying to do exactly?
Reuse just the drivers for leds other than the kind the fixture came with? Might not be possible.

LED drivers are either constant voltage or constant current. The leds must be chosen and oriented accordingly.

Step one would be figuring out the drivers, if you have a VOM its trivial. If you dont, you shouldn't even bother.

OldSmokie76

OldSmokie76

I understand using meter to accurately giraffe the drivers, but i was hoping a simple decoding of the numbers on label couple help me decide what i could run with them. I was only going to build out what these drivers could handle. Basically a first time project for some experience before I go all in on something more expensive. Is it worth the hassle to use these or not? I tried looking up the one from the manufacturer with no specific luck. Just decided to reach out to the farm for any suggestions. Putting a meter to them would be priority right now i guess if the general info can not be had from the labels.

BigCube

BigCube

I understand using meter to accurately giraffe the drivers, but i was hoping a simple decoding of the numbers on label couple help me decide what i could run with them. I was only going to build out what these drivers could handle. Basically a first time project for some experience before I go all in on something more expensive. Is it worth the hassle to use these or not? I tried looking up the one from the manufacturer with no specific luck. Just decided to reach out to the farm for any suggestions. Putting a meter to them would be priority right now i guess if the general info can not be had from the labels.
If you have a VOM. measure the dc voltage output. You can basically add up LEDs until you get up to that voltage. Then banks of that till you cap out the wattage of the driver..

For example:

If your driver is 12v, you can use any leds that = up to 12v. So like 4 x 3v leds. Then run banks of those till you get within 20% of the drivers wattage.

But if you cant find leds that equal up to that voltage, you can under power your leds. Most leds accept a +- of at least .5v

So if your LEDs are 3.7v and your driver is 12v. You should run 4 at 3v each. Not 3 at 4v each, this would overpower your LEDs and they would burn out fast or right away.

Step 1 is finding your voltage, step 2 is choosing leds that you can run with your drivers. Step 3 is planning out the circuit, then build.

It's usually much easier to choose the leds you want, and the wattage you want it to consume, then buying your driver to fit your design.

If it was me, I wouldn't bother re using old drivers. Since drivers usually burn out faster than leds. Specially no name drivers.

Right now I'm building a fixture that runs on an old pc power supply. The 12v rail handles up to 195w at 12v. So I am using 49 x 3w 12v COB leds to make the wiring easy.

If you have any specific questions, I'd be happy to help 👍

OldSmokie76

OldSmokie76

If you have a VOM. measure the dc voltage output. You can basically add up LEDs until you get up to that voltage. Then banks of that till you cap out the wattage of the driver..

For example:

If your driver is 12v, you can use any leds that = up to 12v. So like 4 x 3v leds. Then run banks of those till you get within 20% of the drivers wattage.

But if you cant find leds that equal up to that voltage, you can under power your leds. Most leds accept a +- of at least .5v

So if your LEDs are 3.7v and your driver is 12v. You should run 4 at 3v each. Not 3 at 4v each, this would overpower your LEDs and they would burn out fast or right away.

Step 1 is finding your voltage, step 2 is choosing leds that you can run with your drivers. Step 3 is planning out the circuit, then build.

It's usually much easier to choose the leds you want, and the wattage you want it to consume, then buying your driver to fit your design.

If it was me, I wouldn't bother re using old drivers. Since drivers usually burn out faster than leds. Specially no name drivers.

Right now I'm building a fixture that runs on an old pc power supply. The 12v rail handles up to 195w at 12v. So I am using 49 x 3w 12v COB leds to make the wiring easy.

If you have any specific questions, I'd be happy to help 👍

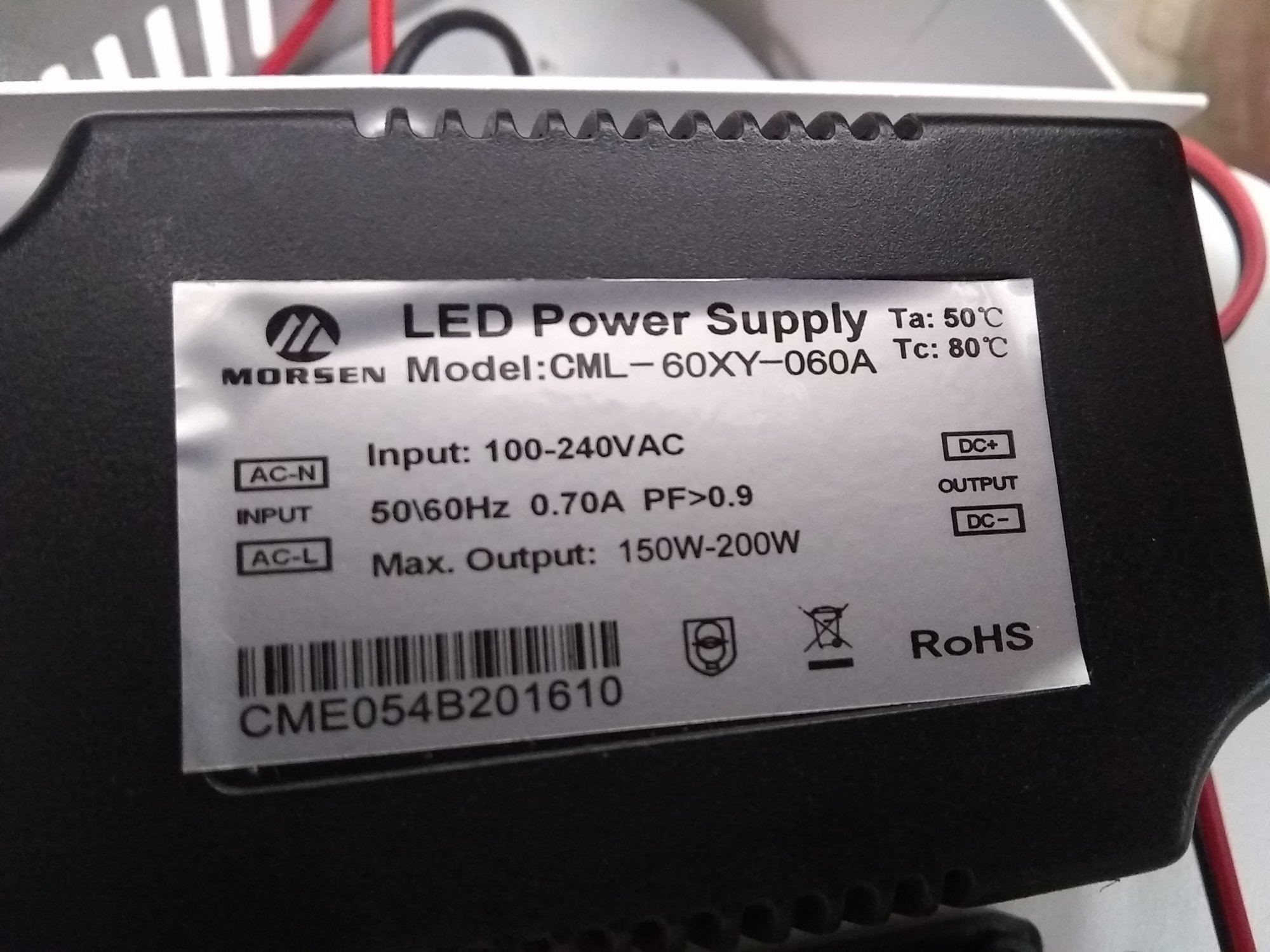

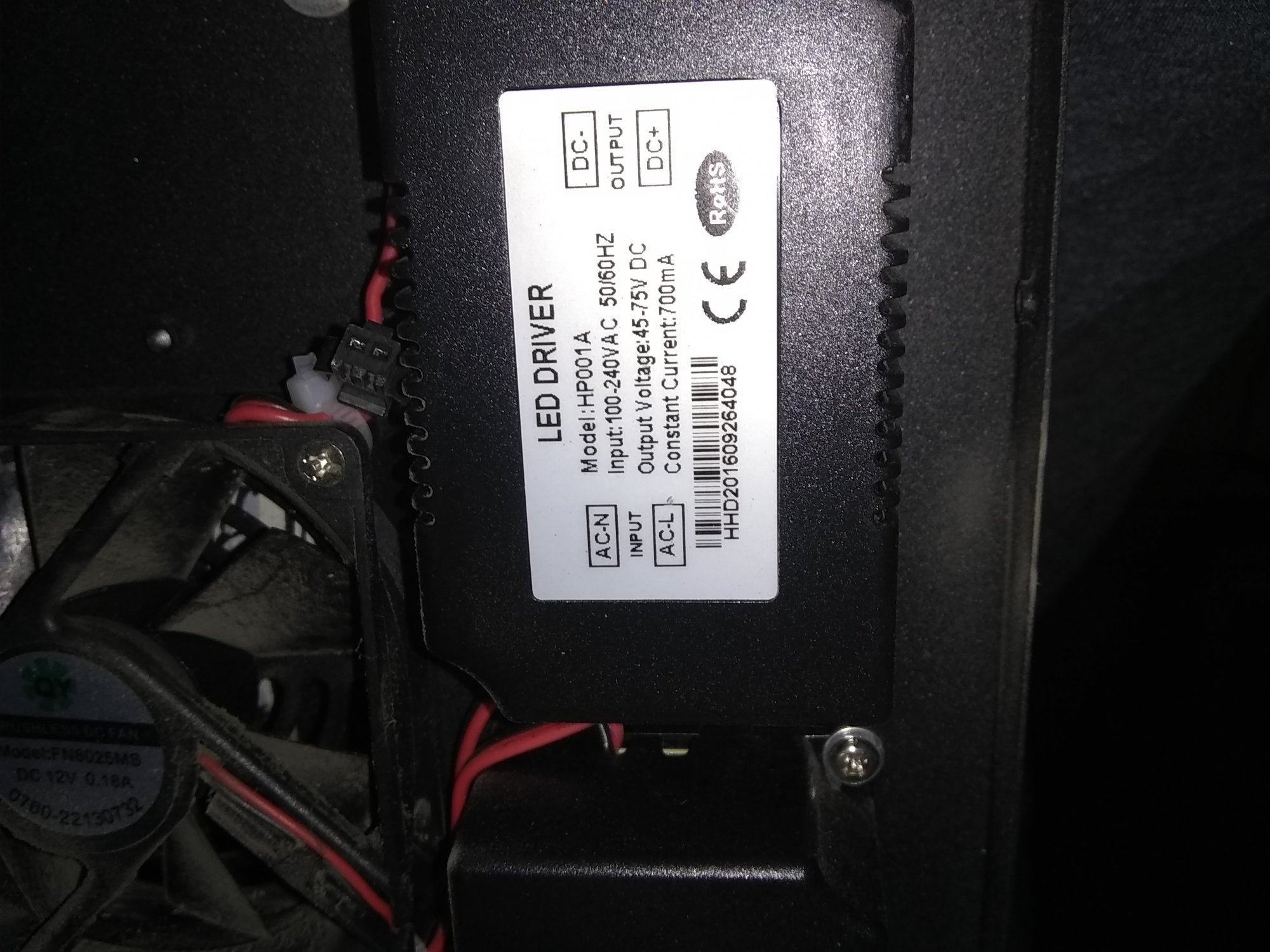

Thanks for the insight. As much as I'd like to make these work, i also understand the benefit of using new drivers for build. Just for s&g, the one driver is showing output of 46-75v. Does that suggest i could run a total of LEDs up to 75v? Unfortunately, that driver does not list wattage. The other driver shows a max wattage of 150w-200w, but no volts. Still best to meter them... About to scratch this project.
