Rapid Led 12 Cob Kit Assembly

[DemonTrich]

Those look pretty bad ass . I'm looking to make a row to light 4 side plants. Subbed as i wanna see what the heat is like.



[Dan789]

Thanks DT, should have it burning late tomorrow if I get some time to work on the fixture. Setting up second tent for bloom, have replanted my girls into the final 7 gallon pots.



[Dan789]

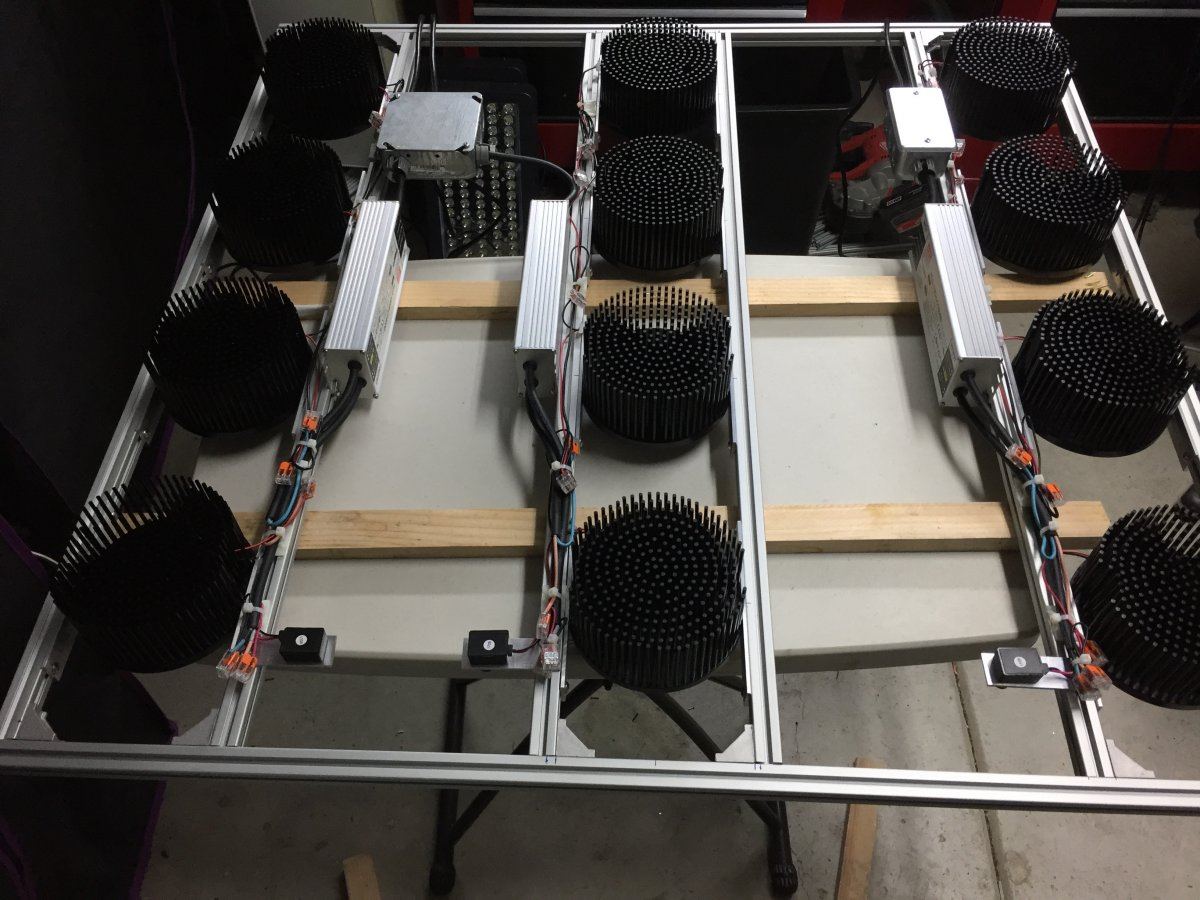

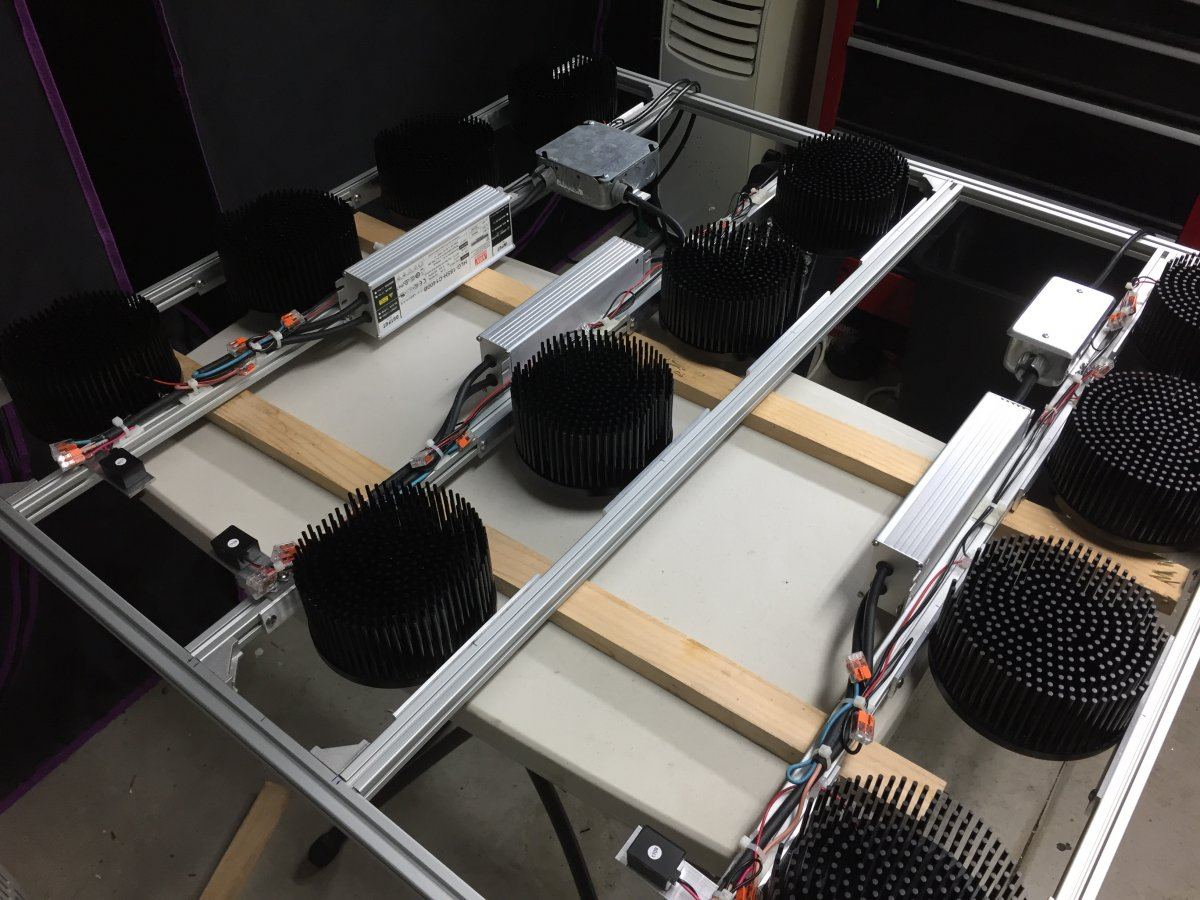

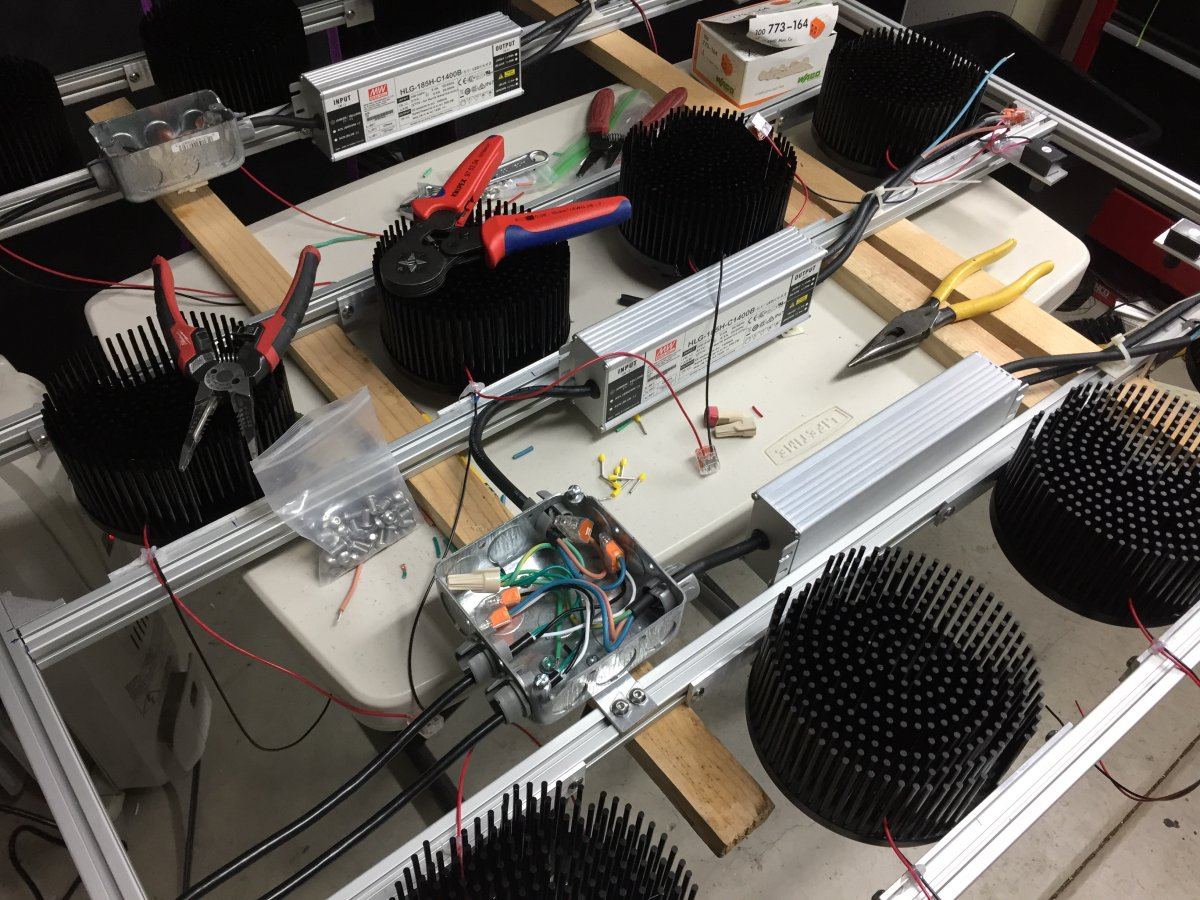

The fixture isn’t hanging yet, but it’s complete (minus the hangars), and even better all the cobs work. Was really sweating the connections on those connectors.



[BombBP]

Looking really good. I can't wait to see 2hat you think about it.



[PhatNuggz]

Been excruciating getting the holes on the heat sinks to line up, small holes 3mm, had to get an “Incra” scale to mark the holes into the substrate so I could then drill them. All the other hardware has shown up so hopefully no more hang ups.

Any reason why you chose not to make the rail distance closer, which would allow the heat sinks to rest on the angle bars? This would allow you to slide each heat sin/cob in or out



[Dan789]

Any reason why you chose not to make the rail distance closer, which would allow the heat sinks to rest on the angle bars? This would allow you to slide each heat sin/cob in or out

Never thought of that to be honest. Next time I’m all for something easier.
But the way I’ve constructed, each row could be isolated and it could stand on its own.



[Dan789]

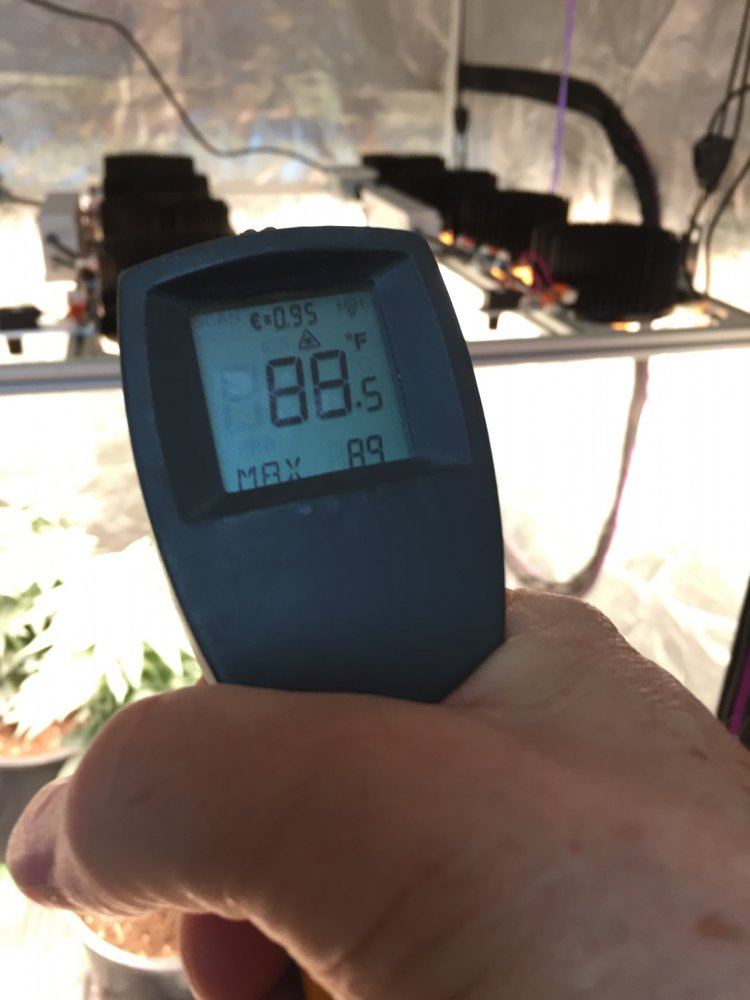

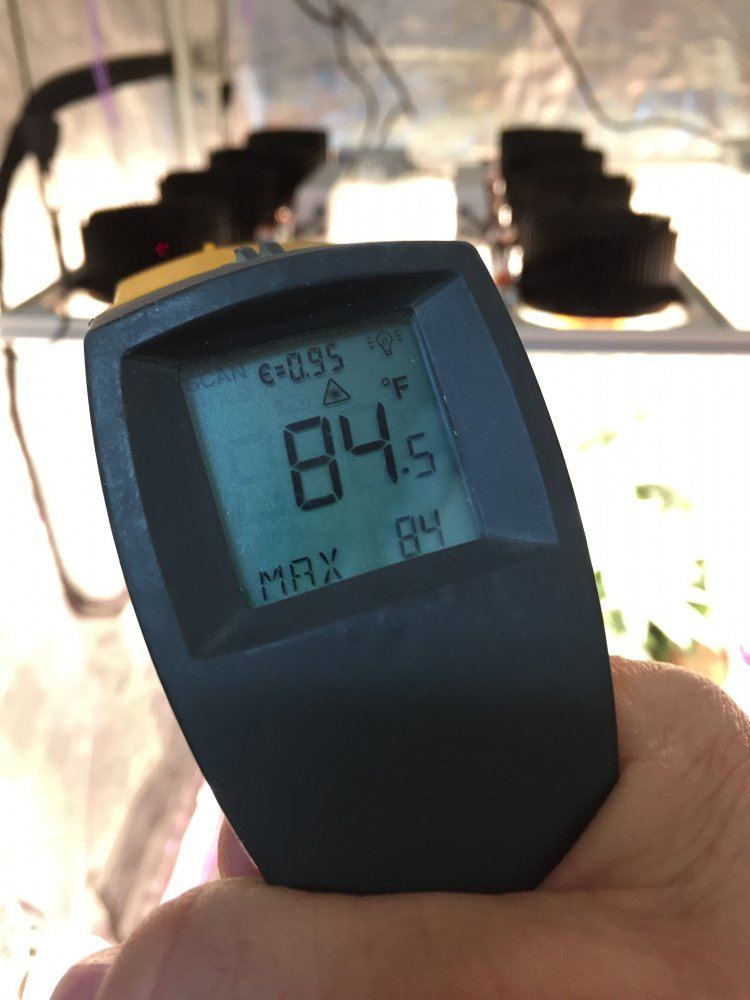

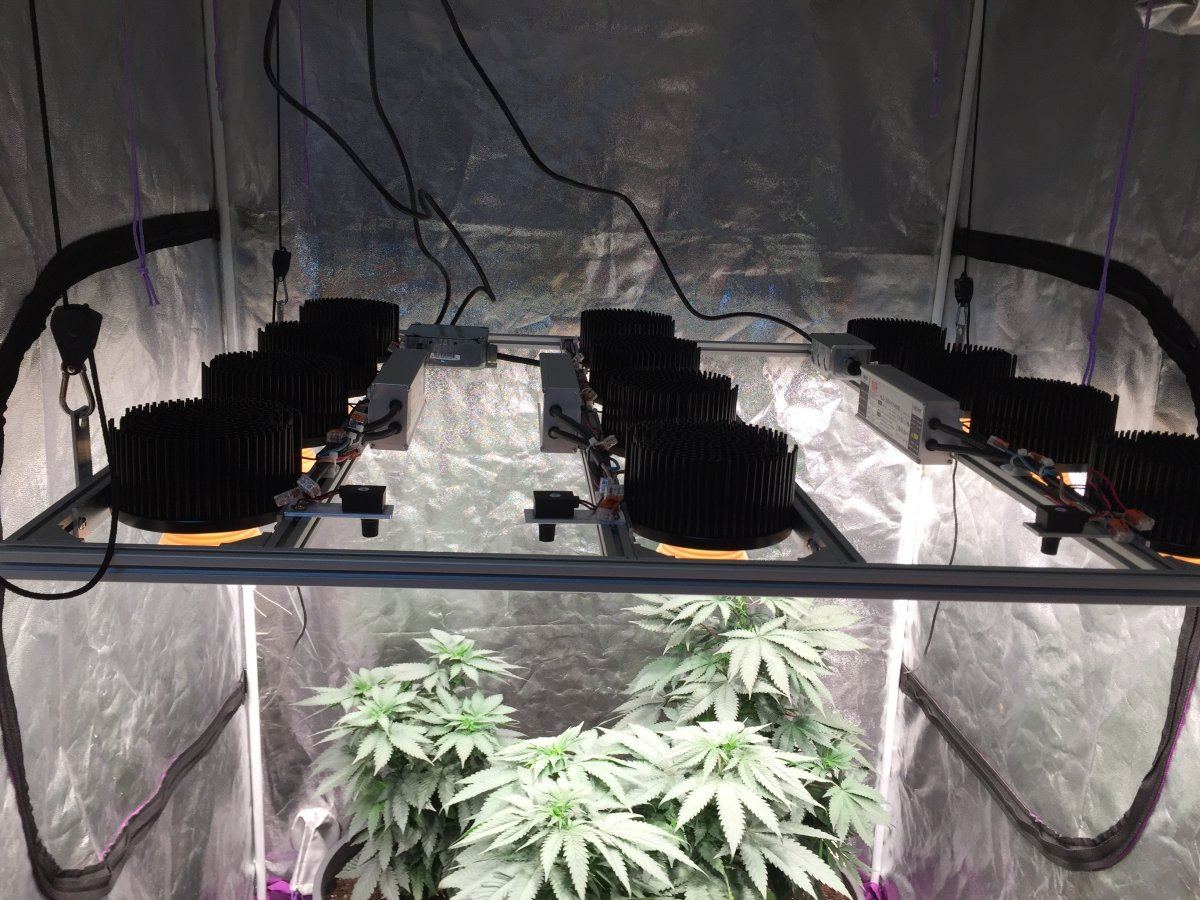

Yippee, fixture up, and all lit up, temp so far around 84/89 at the heat sink after about ten minutes running.
