Realstyles Diy Cxb3590 Tutorial

[keiksweat]

w

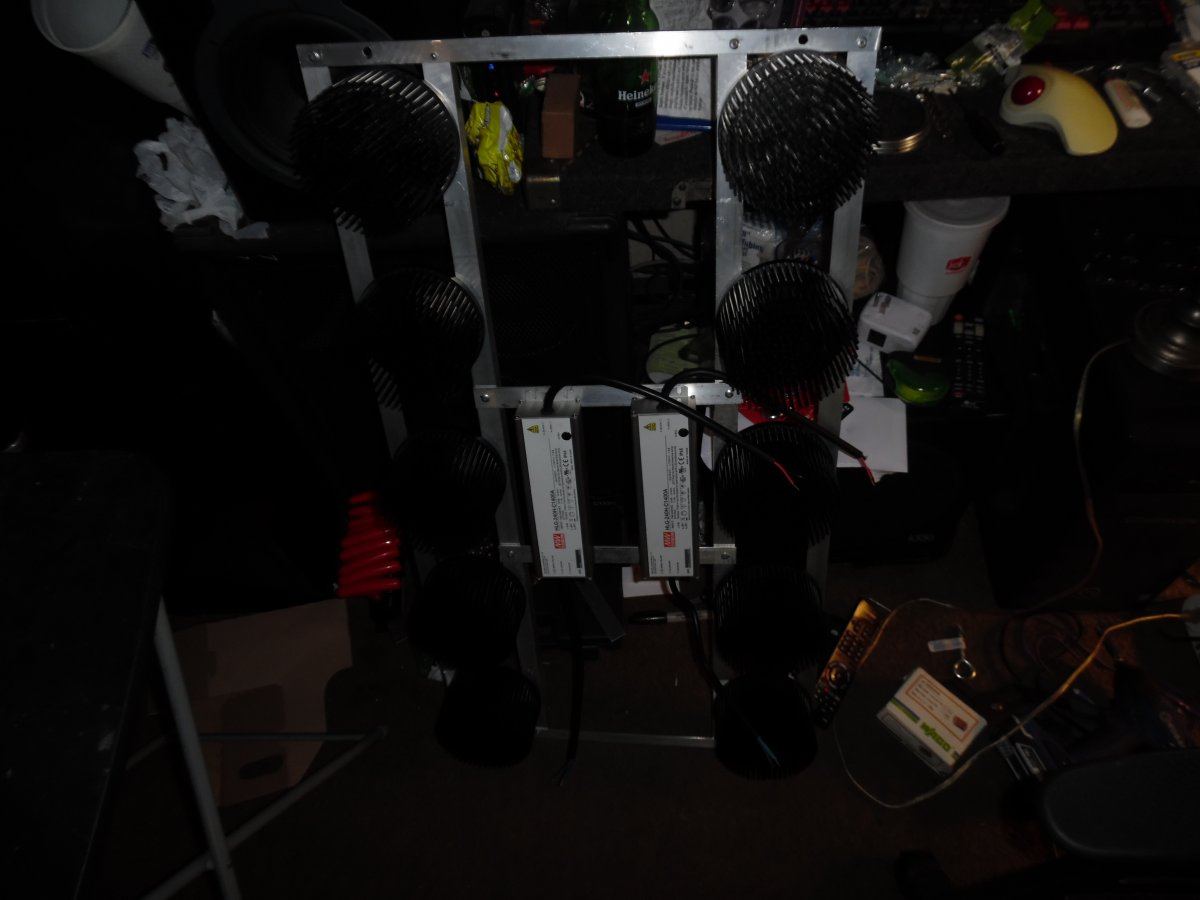

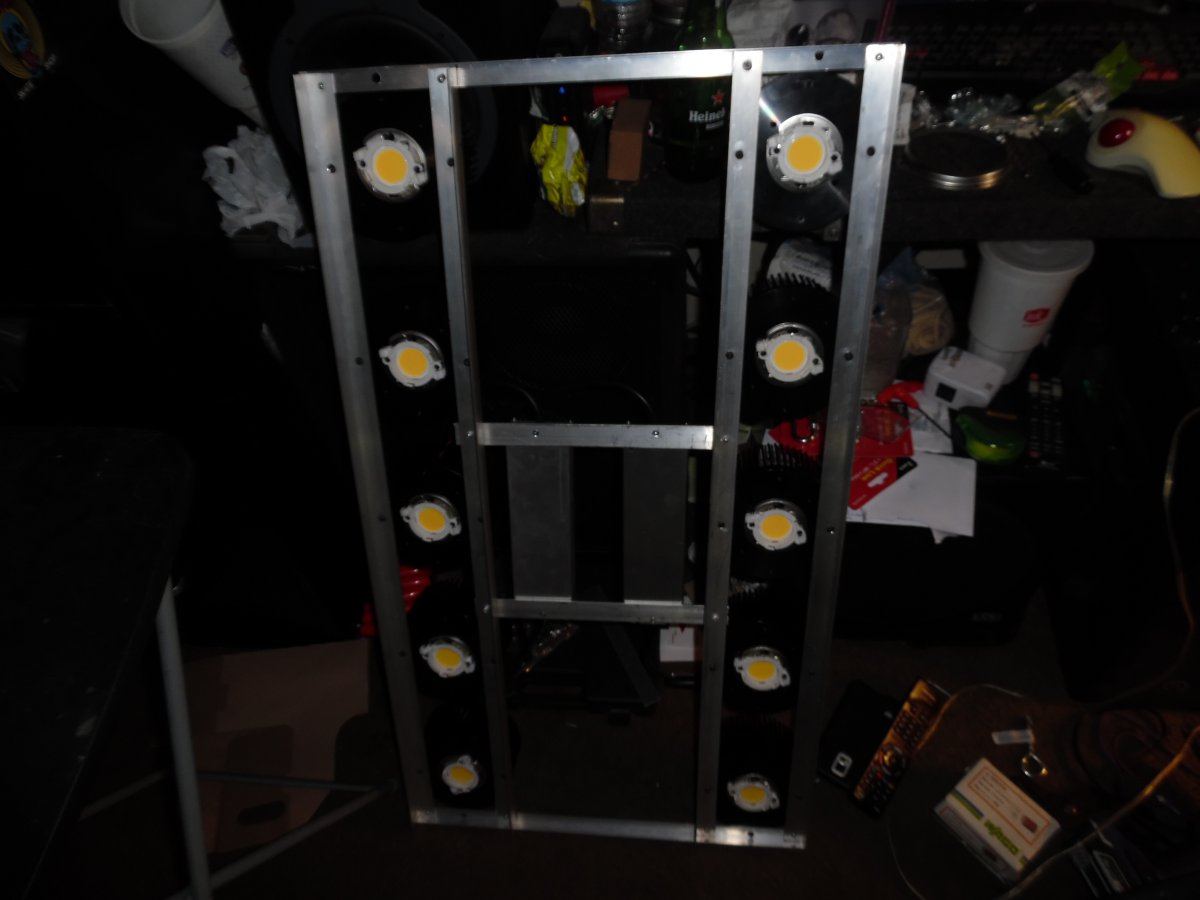

50w This will be my best design ever. I made the frame using angle aluminum and rivets credit goes too Growmau5 and BM9AGS for reminding me of Growmau5 video lol

What's the price each,per pin sink rs plz mate?



[REALSTYLES]

$20 USD but KingBrite would have it cheaper for shipping



[REALSTYLES]



[keiksweat]

love them si

Heat sinks bro,real nice.whats the temps stabilise at on 500watts then?great work as usual RS...



[AvidLerner]

nice fixture. looks good and produces a LOT of lumens. nice work bro. Kep up the good work. peace
Avid



[REALSTYLES]

Almost done waiting for parts.



[REALSTYLES]

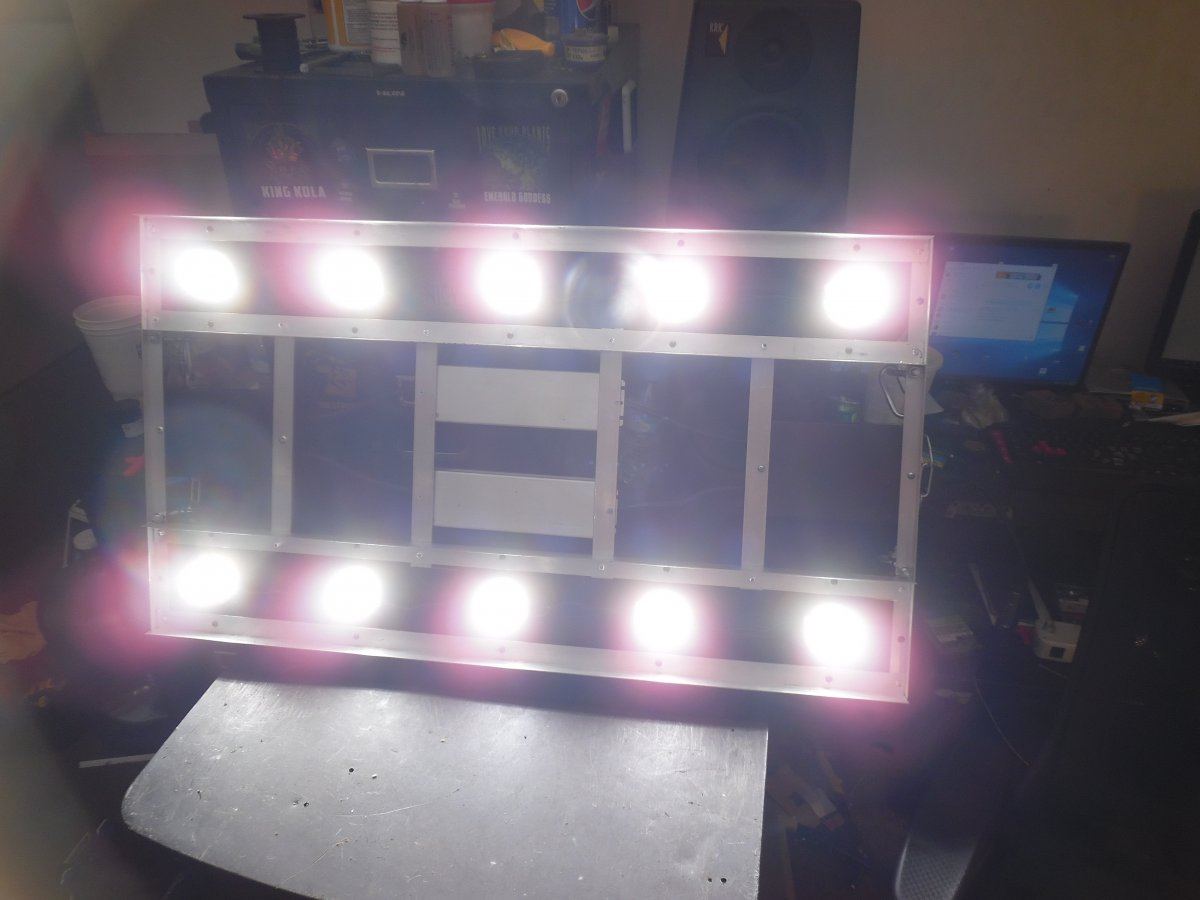

The beast is alive



[Toaster79]

could you use the HLG 240 @ 700ma to power 5 cxb 3590's @ 72v
178-357 volts
5x72=360
357/5=71.4

Yes but those COBs won't see the full 700mA. Check the datasheet of both LED and driver to see where the current and voltage curves cross.



[Freshone]

What size area is that light designed to cover?What's is the amp draw of each driver and 5 cobs?
Thanks for taking the time to post up your builds.



[C21H26O2]

Thanks for the tutorial, but they`re still expensive, even to build one. Have used LED`s for 7 or 8 grows and do luv `em.

What lights do you use?



[C21H26O2]

Vero's are ok but Cree are more efficient and you'll end up buying CXB3590 anyway so just spend the $46.50 from Kingbrite you won't regret it

What's your humidity kept at when your flowering? Thinking about installing a flood table but figuring out logistics

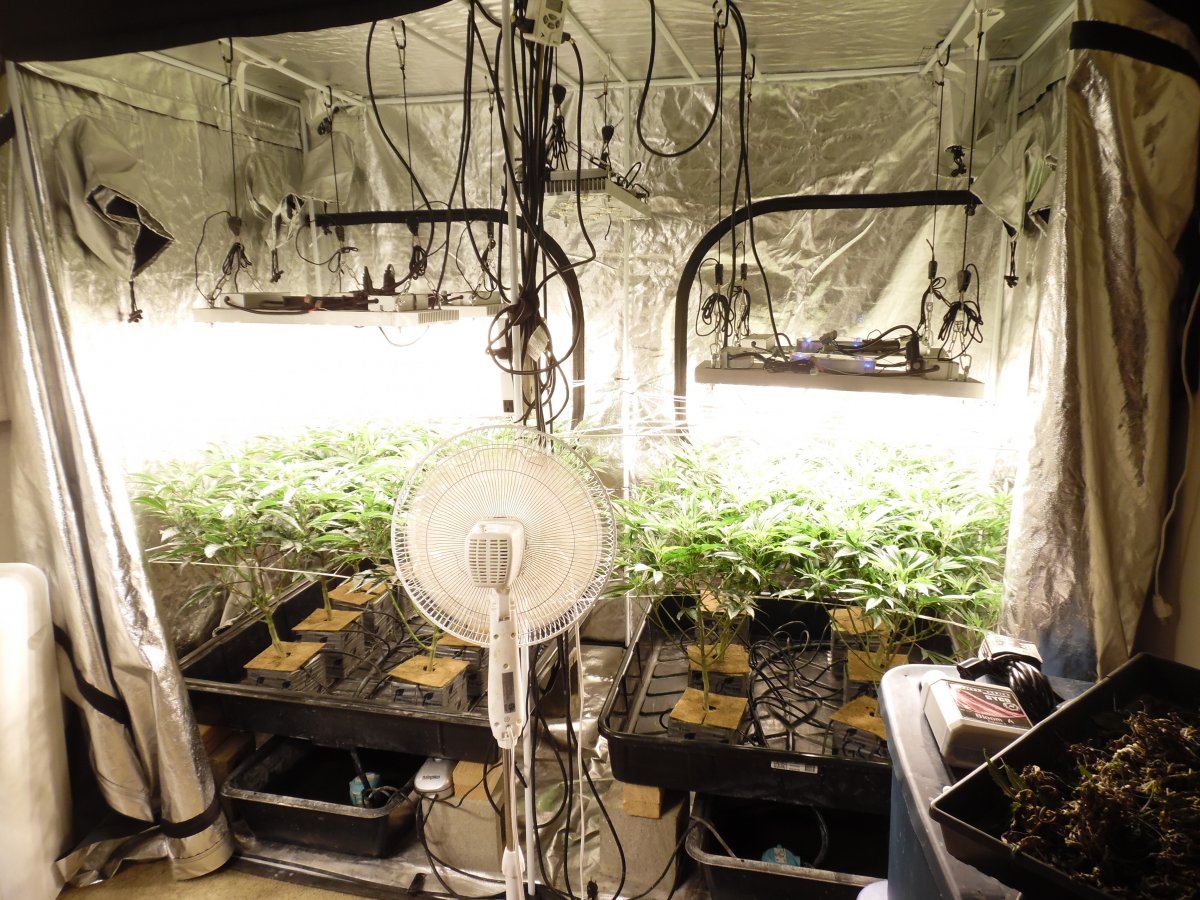

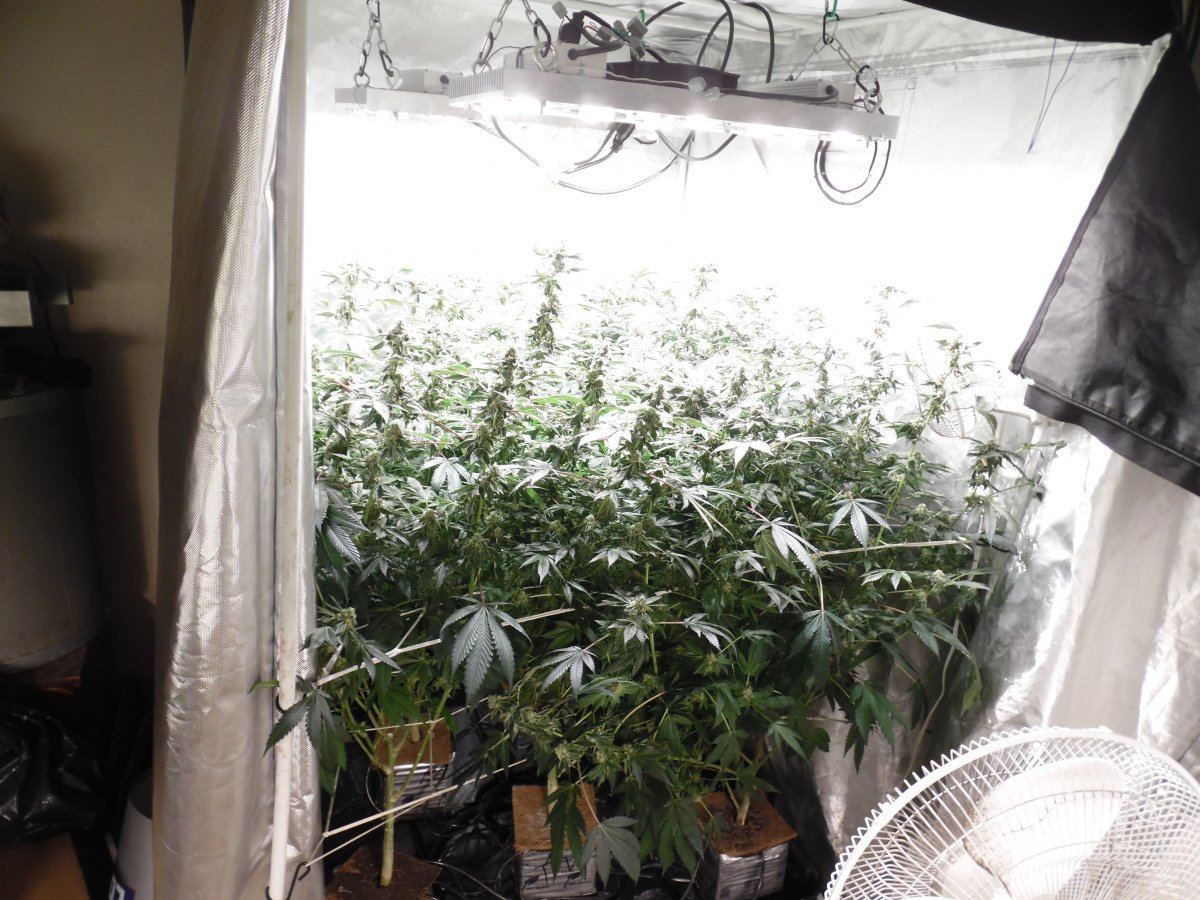

View attachment 552586
View attachment 552587



[keiksweat]

hey rs,how's the light bro?you got optics,reflectors on it?or don't want any.hey ,you read that Kat with the Samsung diodes?what you reckon.real cheap...hope there not real shit too for him.aint seen your girls for ages ,any pics mate.cheers....keiks.



[Paul Simon]

@REALSTYLES Love the thread. You alive?



[REALSTYLES]

@REALSTYLES Love the thread. You alive?

Always lol been very busy converting a 11x19 from HPS



[Paul Simon]

That is epic @REALSTYLES we will eagerly await pics! I will soon be converting two 12x12 bloom rooms, a 12x12 veg as well as 12 4x4 negative pressure breeding boxes with 3590 based fixtures. You have been both an inspiration and a fantastic resource in this process. I can't wait to leave the HID world behind me.



[REALSTYLES]

That is epic @REALSTYLES we will eagerly await pics! I will soon be converting two 12x12 bloom rooms, a 12x12 veg as well as 12 4x4 negative pressure breeding boxes with 3590 based fixtures. You have been both an inspiration and a fantastic resource in this process. I can't wait to leave the HID world behind me.

I'm waiting until I get my parts to make a 600w lights using 2 Meanwell HLG-320H drivers 12 CXB3590 high CRI COBs(3200k Studio CXA/2 93CRI, CXB 5000k 90CRI and 3000k 90CRI)



[REALSTYLES]



[str8smokn]

Let's see it fired up.. Shit looks Bangin
Keep on pushing the knowledge for us. I will jump in here one day , so I'm just trying to take it in and learn while I can.
STR8



[REALSTYLES]



[AvidLerner]

Nice light clean build
