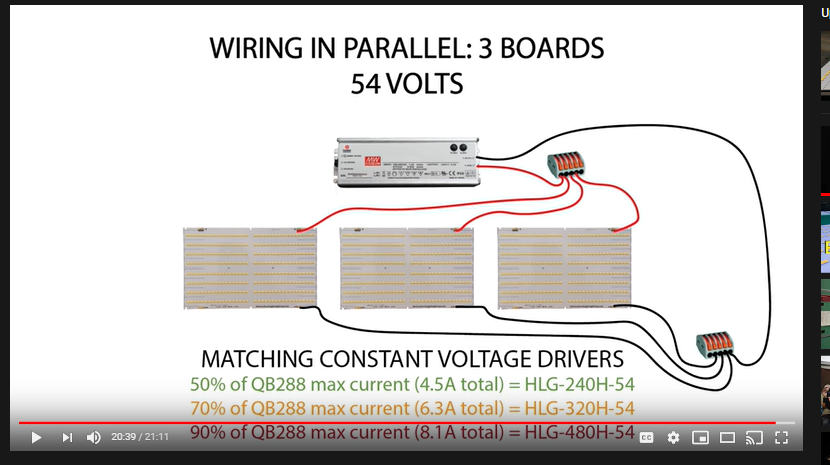

OK, so I am going to start off by saying since you don't know anytning about wiring you should have spent the extra money to purchase an already built light. However this wiring is pretty easy, just follow that image you put up. Black hooks up to all the outlets on the board that are labeled (-), the red goes to all the outlets labeled (+), just follow the markings on the driver. The White and blue wire set is for dimming purposes, tape those off with electrical tape if you do nit have a dimmer.
Lets see if we can get through this together. From what you stated:
Outlet plug end:

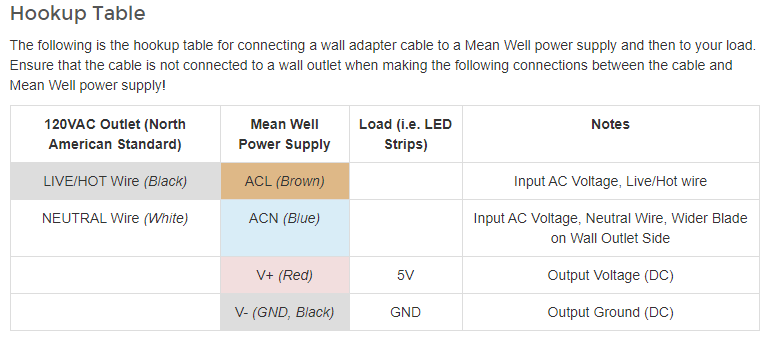

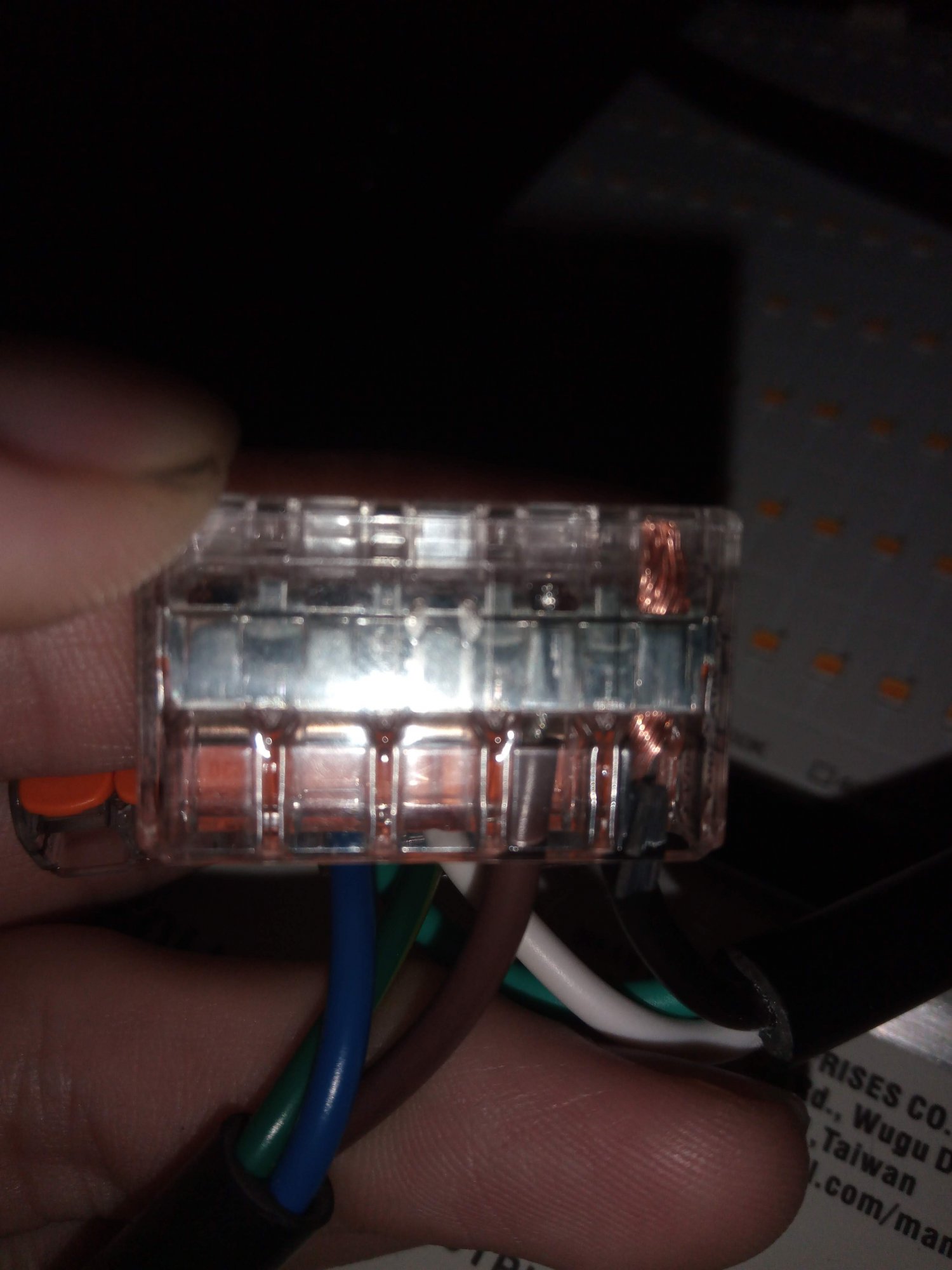

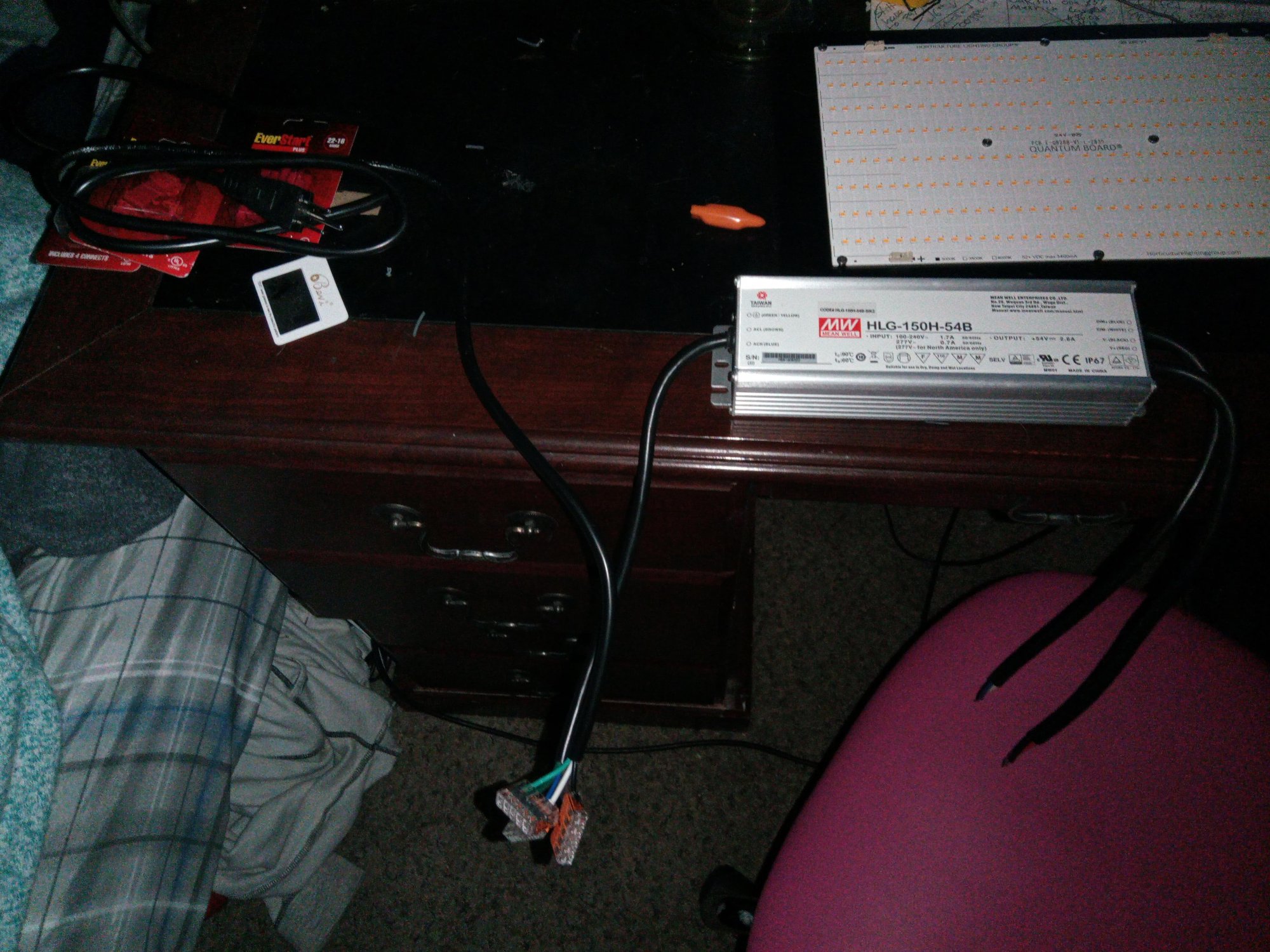

Connect black and brown in 1 wago connector - looks correct

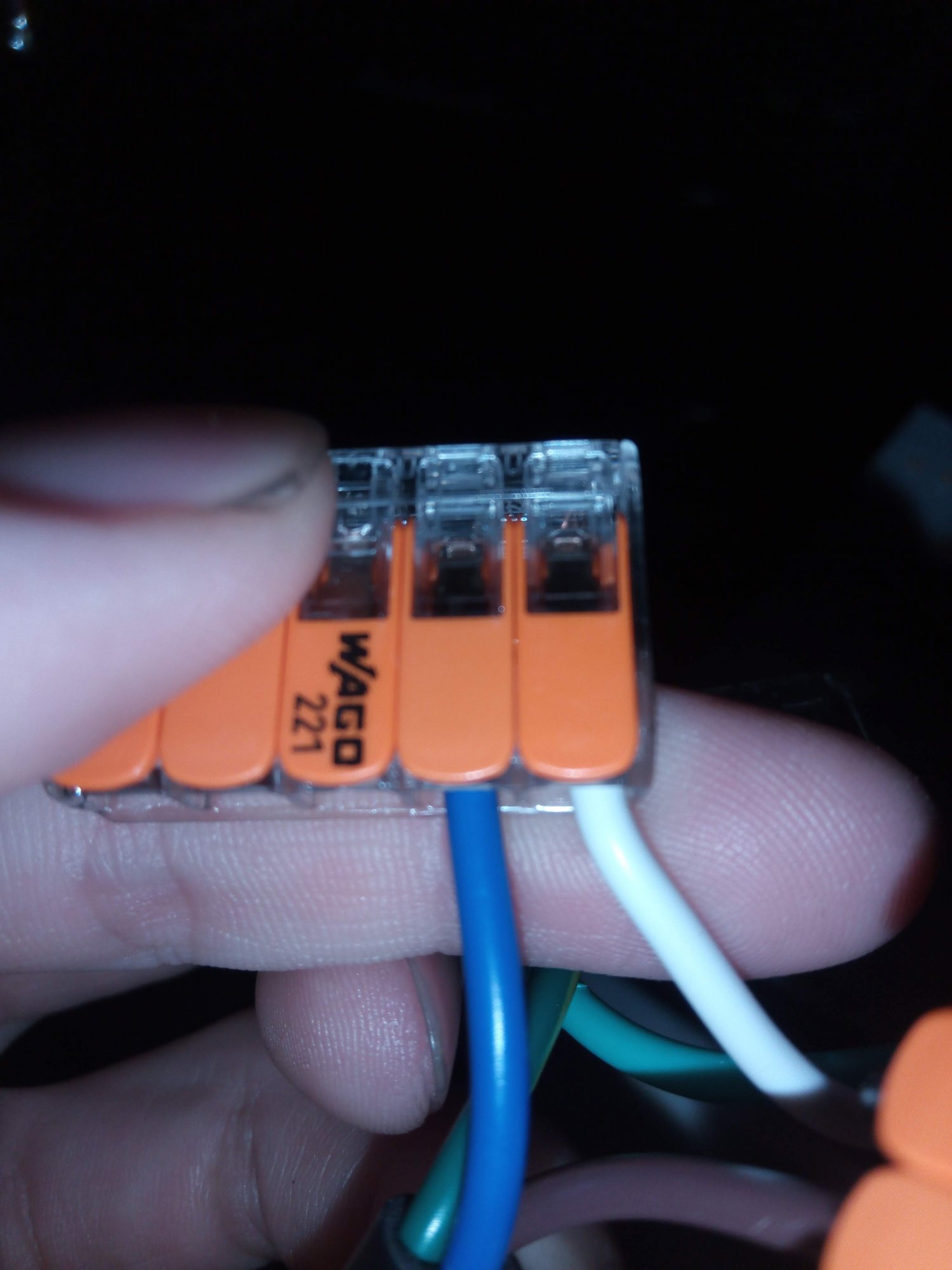

Connect white and blue in separate wago connector - looks correct
Connect green and green in separate wago connector
Pictures seem to show that your plug end is wired correctly
Moving to the other wires ....

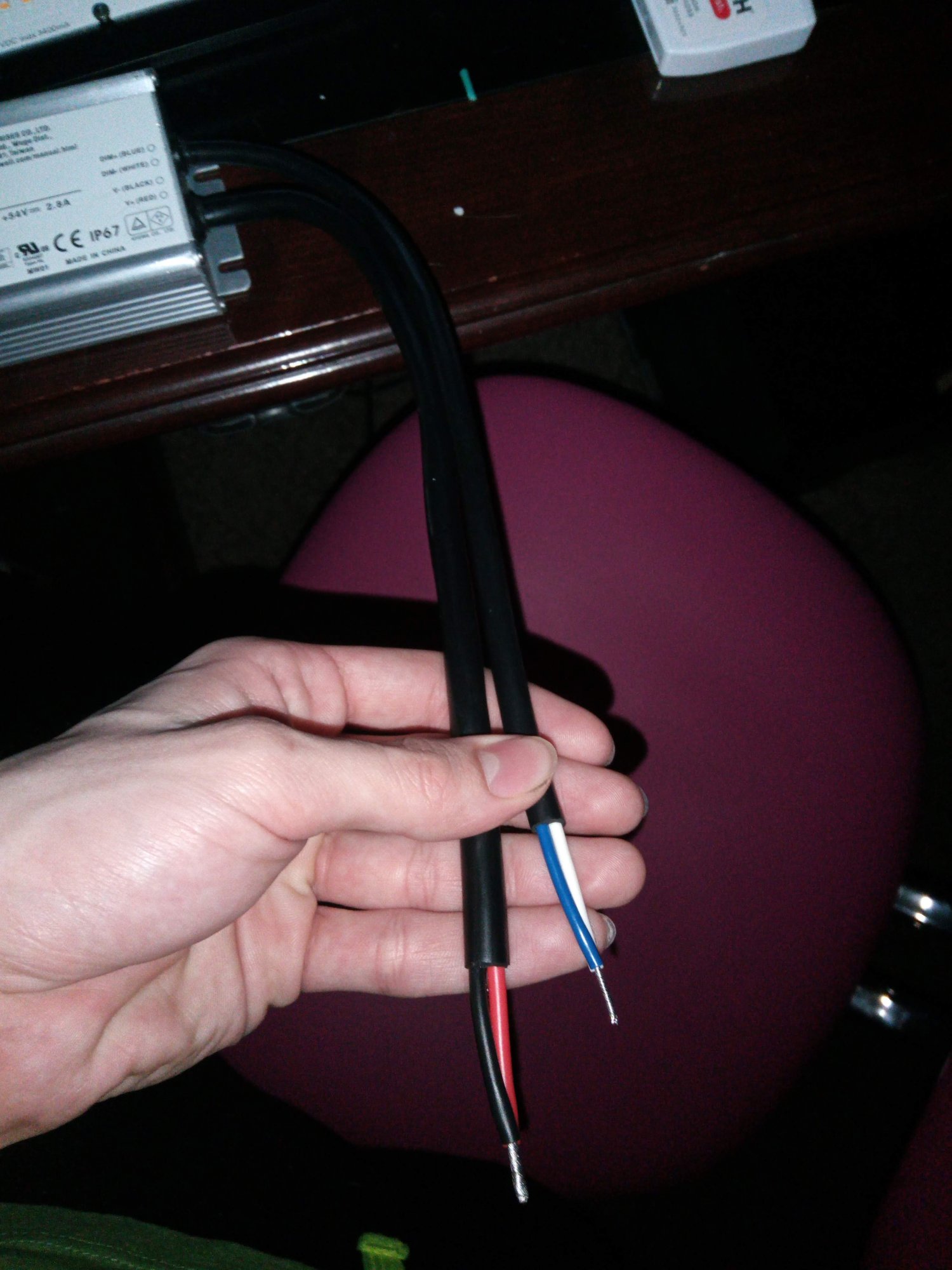

Black is hot. Red is neutral.
Blue and white are your dimmer control wires

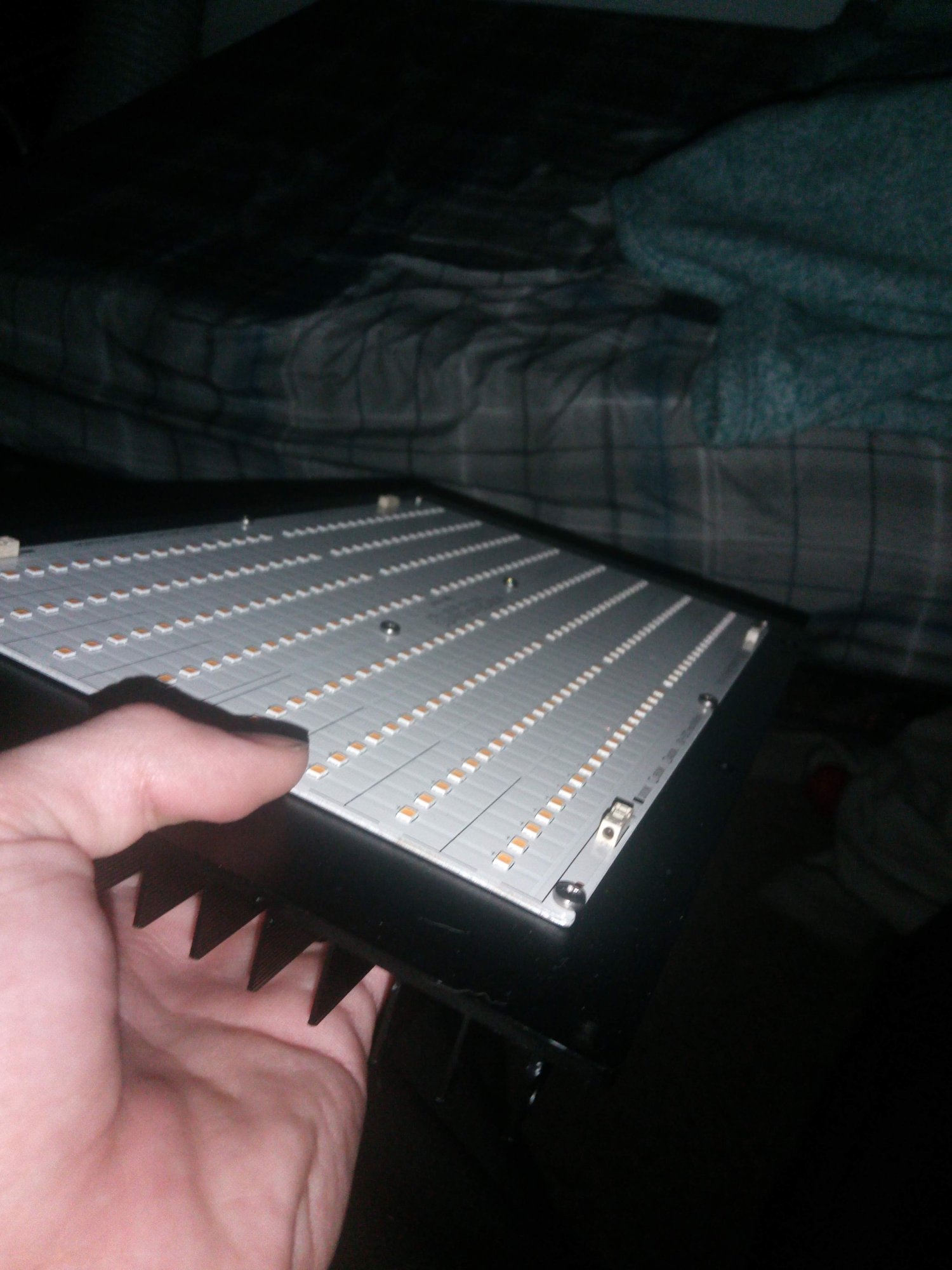

The red and black will connect to your boards and the blue and white will connect to your dimmer. If you get stuck, let me know ....
I can on to say the same thing .......

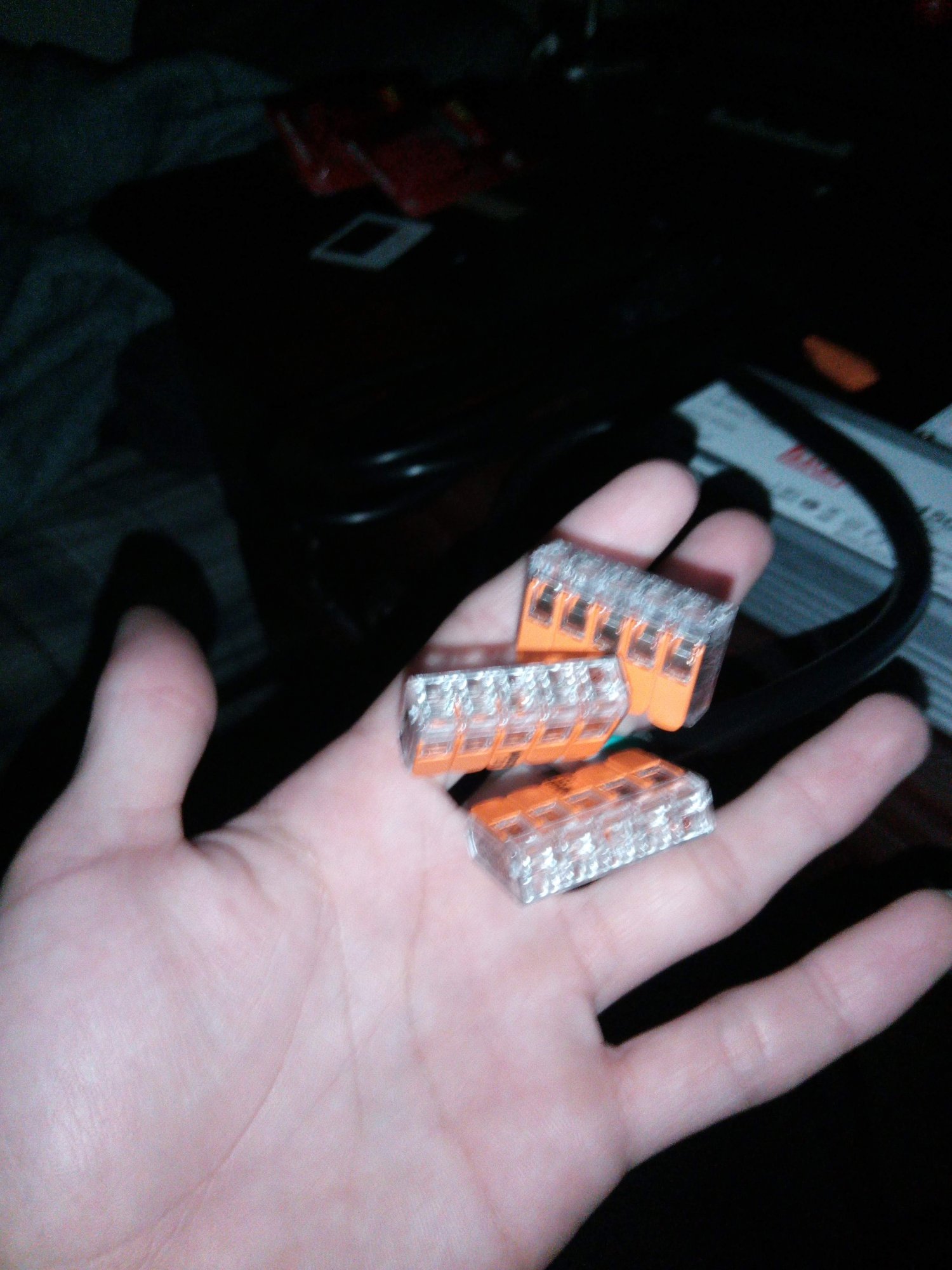

now your going to run a wago on the black and red and add wire to get to the light..... you can go up to 10 ft but you really only need a few ft of wire just to get the driver outside the tent....
Okay, cool thanks guys, this is what i needed. I know, i should have got an already built light, but, for the future, i do want to know how to build my own. So i am going to have to get over this stepping stone anyways at some point, im here now, already got the parts, i might as well learn. I can do this, just gunna take some learnings.
I think i understand how to connect the wiring to the light now i know which colors go where.
So heres a seperate question. I couldnt find black and red solid core wiring.

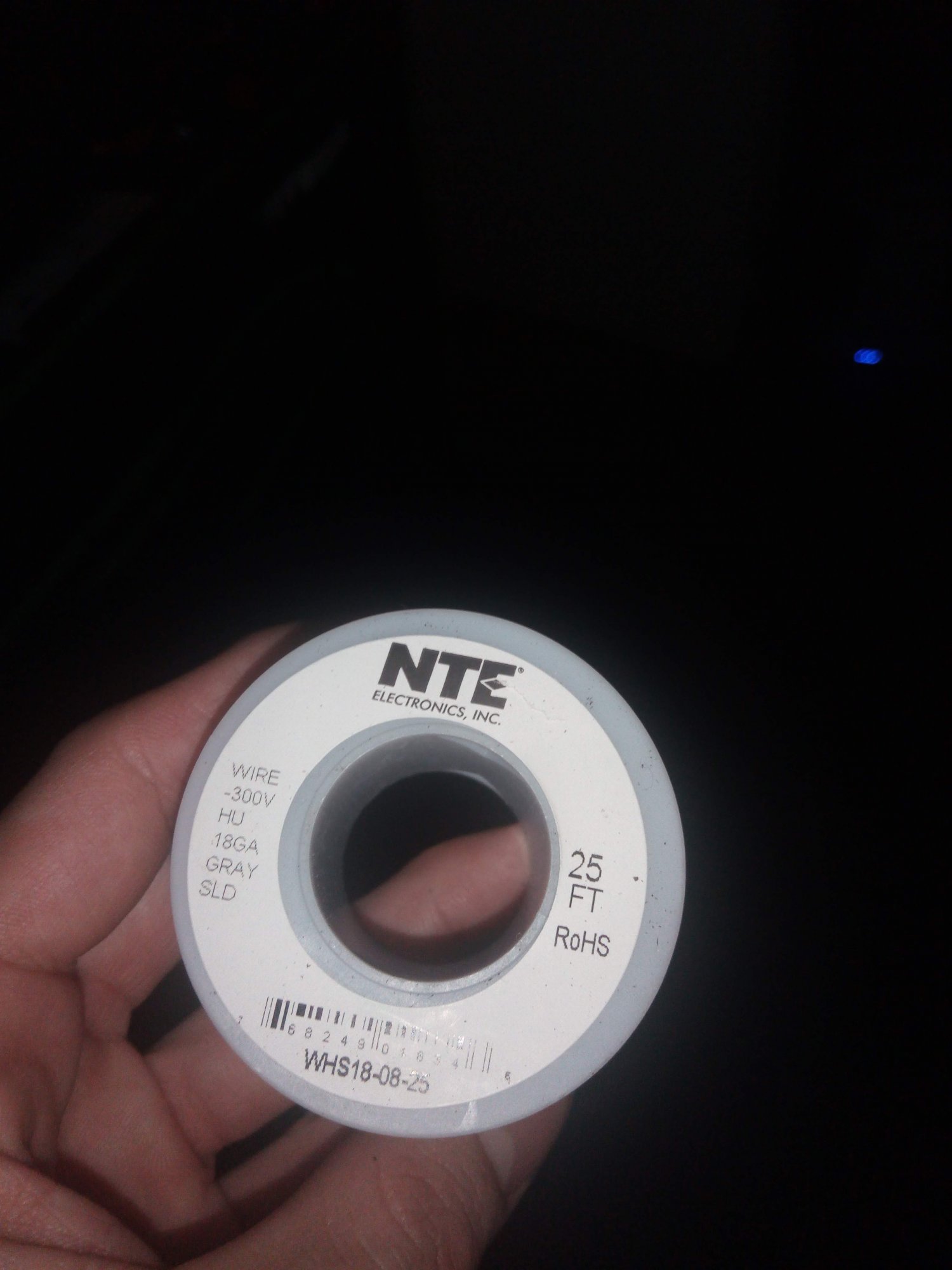

I grabbed 2 gray strands, and i figured id color one myself. Can i do this? Is the different color wires, different type of wire? yep, im THIS nooby lol.
If i need to, i can get black and red,just gunna have to wait a little cuz this corona fuck shit lol.
the blue and white is for the dinner pod you never gave me a address to send to so you should run Both those qb's on 1 driver for Now so your not pushing 140w into 1 qb
Fuck i get so behind on things, i thought i did, but i guess not. I can just grab one do u have a link? ill spend the money bro, youve already done an over the top amount of help for me. Now youd be spending money to send, id feel bad.
COol, atleast i got the correct driver then, i thought i ordered the wrong one lol.
all he needs is help to put this together like 5 mins....
wow......
Its okay! im doing good getting things done, i got this, people can have opinions on how i do things, its not their garden and i will build a light if i want to, and put it in my garden if i want too. Sure, an unexperienced guy like me may be better off with a pre built light, but, i want to know how to do this. im interested in this.
Im a computer nerd, who knows 4 computer languages. Im fairly smart.
In defense of the OP - I disagree. This is simple stuff and although at first attempt it can be confusing, for most it only takes putting 1 light together and they now how to do it until the end of times.
Even easy things can seem hard until we're put on the right track
This is all i need, just some direction, im also googling, i have learned alot about wiring through this. If i dont ever go through this learning phase, how am i ever supposed to get on your guys's veteran levels? Just never build a light and never know? its good!
Appreciate everyone alot, i think ill get this now that you guys verified which ishot and not etc. thats what i didnt get. the colors and shit got confusing, to which spots they go etc. i get it now.
