Upgrading airstones and need recommendations.

[Cashmeh]

Venturi all the way. One less thing to get tangled in the roots. Ill never use anything other than Venturi's again.

Amazon.com : EcoPlus Eco 396 Water Pump Fixed Flow Submersible Or Inline For Aquariums, Ponds, Fountains & Hydroponics - UL Listed, 396 GPH, Black : Pond Water Pumps : Patio, Lawn & Garden

Amazon.com : EcoPlus Eco 396 Water Pump Fixed Flow Submersible Or Inline For Aquariums, Ponds, Fountains & Hydroponics - UL Listed, 396 GPH, Black : Pond Water Pumps : Patio, Lawn & Garden

www.amazon.com

Amazon.com: Lewisia 35W Commercial Air Pump 794 GPH Magnetic Oxygen Pump with 6 Outlet for Koi Pond Aquarium Hydroponics Fish Tank Fountain Pond Air Aeration Kit : Pet Supplies

Amazon.com: Lewisia 35W Commercial Air Pump 794 GPH Magnetic Oxygen Pump with 6 Outlet for Koi Pond Aquarium Hydroponics Fish Tank Fountain Pond Air Aeration Kit : Pet Supplies

www.amazon.com

Now I say the magnet pump due to it being overpowered. I run 3 4x4 flower rooms, each with one plant in a solo 30 gallon tote. This magnet pump provides enough air for all 3 plus my veg 30 gallon tote. Its expandable basically. A bit loud though.
As for that water pump it comes with the venturi fitting that you hook up the airline too, and a mesh filter for trapping loose roots.



[Cashmeh]

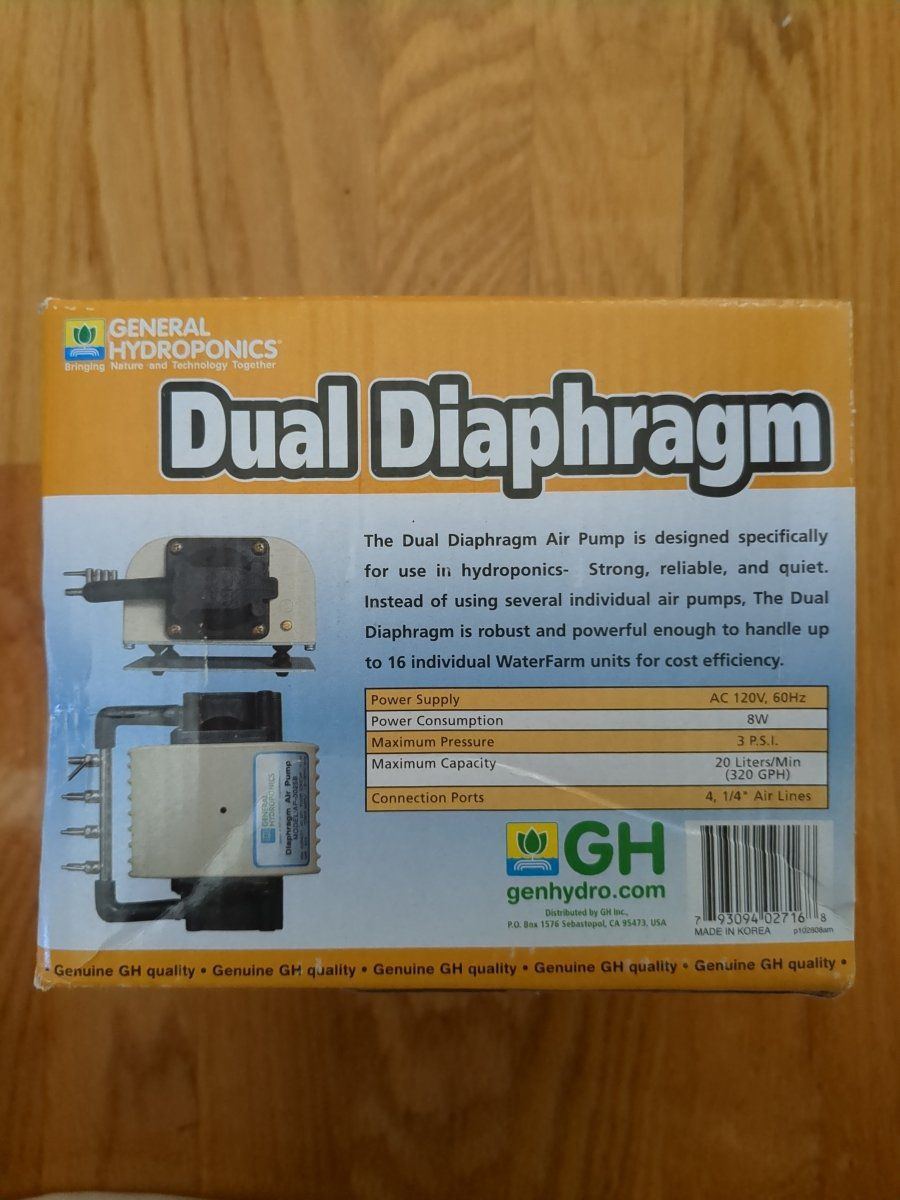

Personally gave up on airstone due to having to clean or get rid of them, Venturi set up has kept my DO levels good even at high temps, also duel diaphragm pumps are great would recommend for anyone looking for a good pump

As I tell the wife when I wanna see her goodies. . LEMME SEE IT - aka your venturi plz



[Bluebuddha]

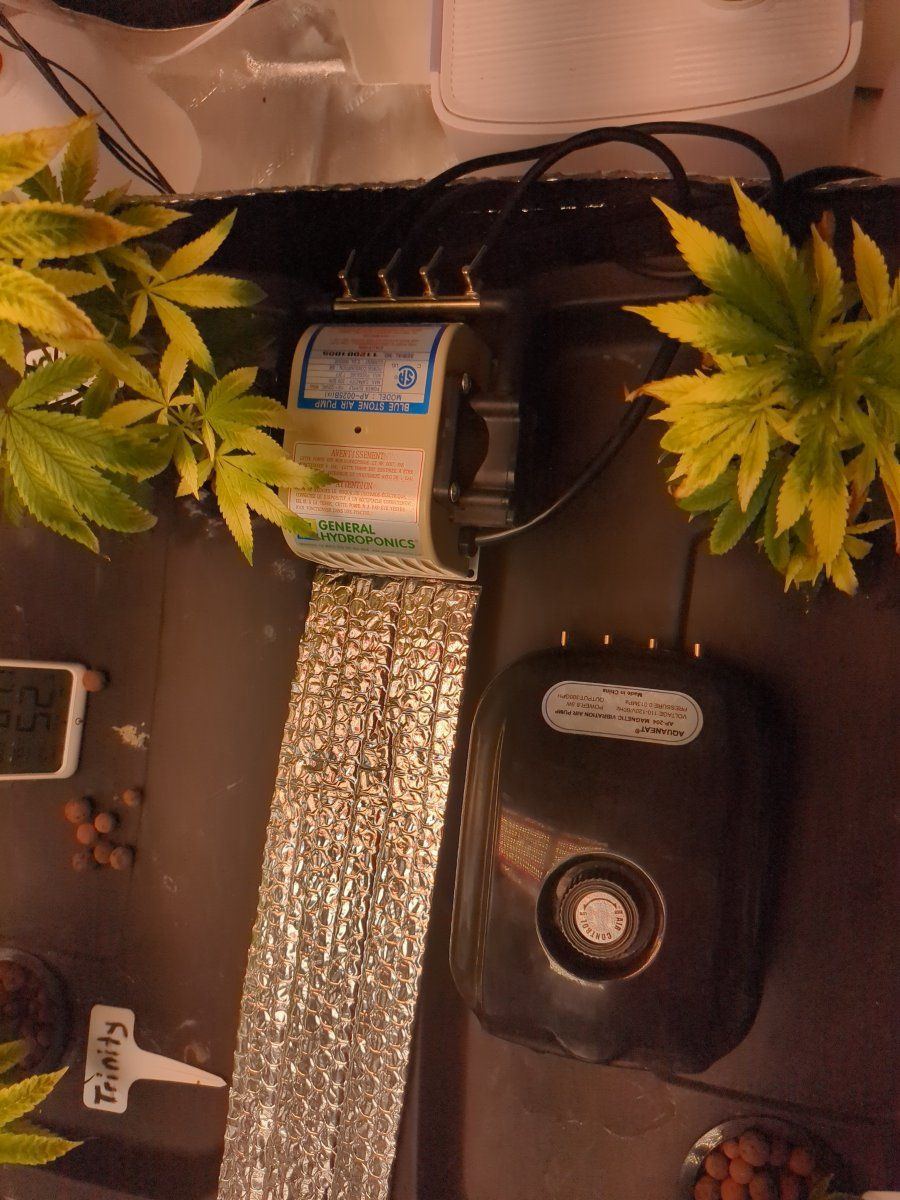

By far the best quality and best purchase so far. Thanks a million @Moe.Red its a damn whirlpool in there now. It's also super quiet.



[Moe.Red]

Beauty. Quiet and efficient, doesn't push heat into the res like cheap pumps.

I've got several running for over 3 years now and they still purr like day one.



[Aqua Man]

Yeah you need 10-12lpm each for the 4x2 stones for then to work properly. So you match the pump to the airstones you use. Its all about surface agitation



[Bluebuddha]

Which bulkheads are recommended? Going 3 inch and will glue in the PVC with shutoff valves. Also, is there a hydrodynamic bottleneck If I used an 18Gal reservoir to house the pump and push to 2 31Gal grow res's?



[Aqua Man]

Which bulkheads are recommended? Going 3 inch and will glue in the PVC with shutoff valves. Also, is there a hydrodynamic bottleneck If I used an 18Gal reservoir to house the pump and push to 2 31Gal grow res's?

Depends on the pump size but 3” should be more than plenty to see no issues with that



[Moe.Red]

Which bulkheads are recommended? Going 3 inch and will glue in the PVC with shutoff valves. Also, is there a hydrodynamic bottleneck If I used an 18Gal reservoir to house the pump and push to 2 31Gal grow res's?

For 3" bulk heads, you want Current Culture

Current Culture UC Spin Tight Bulkheads

Buy the Current Culture UC Spin Tight Bulkheads at Hydrobuilder.com. Shop the entire line of Current Culture products along with thousands of hydroponics supplies on sale now.

hydrobuilder.com

If you have trouble getting them, I have some.

In terms of bottleneck, there will be none if your 3" return is level all the way. I have currently (2) 800GPH pushing into (2) 13Gal grow sites, res is 55 gal but only about 2/3 full. Total system water is just under 70 gals. It's the same res and equipment that I used previously for a 6 pot grow system, so it's oversized for 2. 400GPH would be plenty. I run 2 pumps just to have the fail safe, but one is plenty.
