Str8s Orient Express

[G gnome]

Yep , I will be tying in a sink into the drain and that's it I think.
So should I need to add a tank ( like a French drain tank ) and just run off that like a real septic system is?
Or would just splitting it up into 2 4" lines work ? Running them 10' each.
STR8

No i dont think u need a tank. I wud dig a pit and line it w landscape fabric run ur pipe to it and fill it w 3/4 minus or larger stone. Assuming u have good drainage where u r i think a 3 or 4 ft cubed pit wud be good.



[str8smokn]

Haha, I only got about 10' today and started to hit harder ground.
So tomorrow I go rent a Ditch Witch and finish this ditch and go ahead and dig my septic/sewer line.
STR8



[G gnome]

Heres the rubber sealant shit i had in mind to line ur floor with.....
http://www.rubbersealtm.com/product...MIpfafhMH91AIVDnF-Ch2kRAO7EAQYBCABEgJyAvD_BwE



[str8smokn]

No i dont think u need a tank. I wud dig a pit and line it w landscape fabric run ur pipe to it and fill it w 3/4 minus or larger stone. Assuming u have good drainage where u r i think a 3 or 4 ft cubed pit wud be good.

Sounds on point, thanks I needed a second opinion.
STR8



[G gnome]

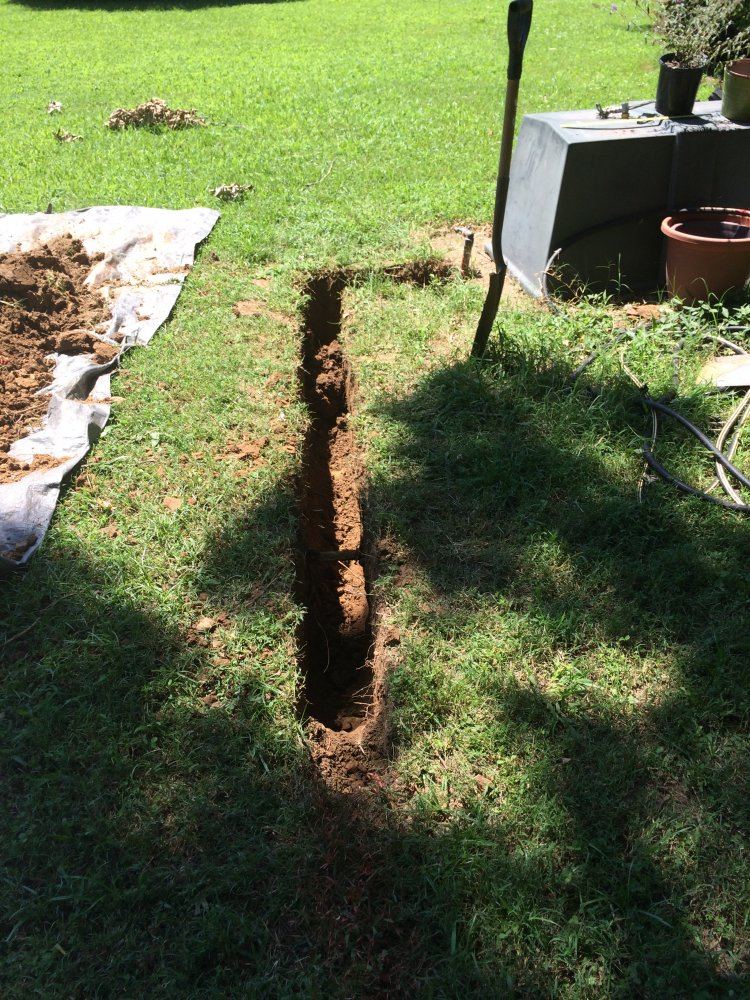

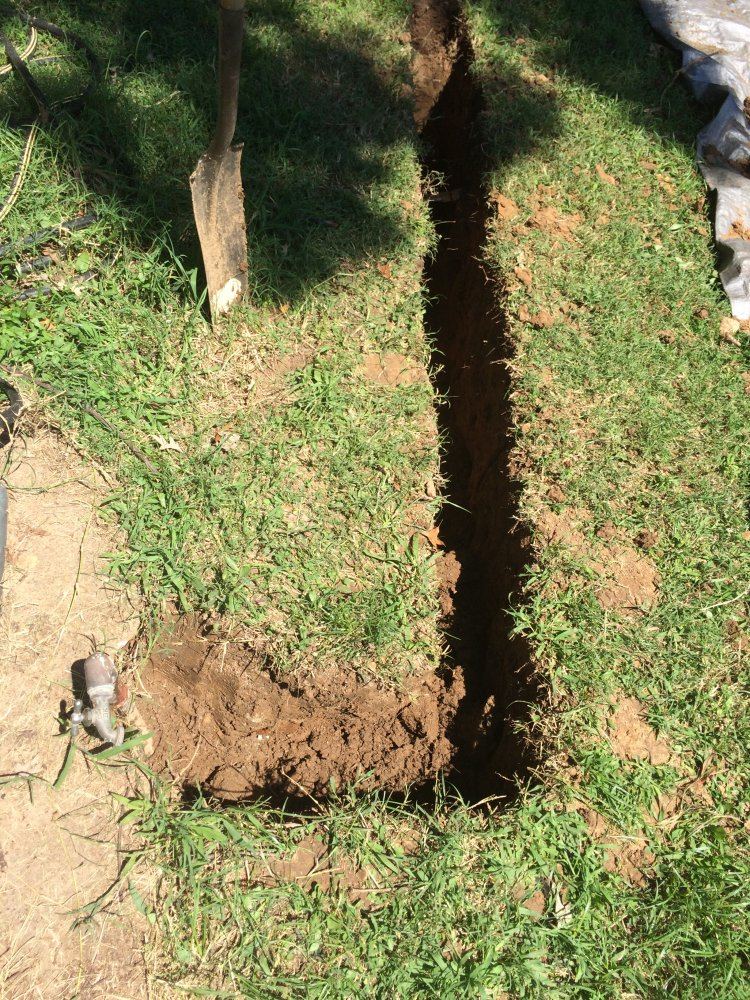

View attachment 718625
View attachment 718626
Haha, I only got about 10' today and started to hit harder ground.
So tomorrow I go rent a Ditch Witch and finish this ditch and go ahead and dig my septic/sewer line.
STR8

It dont look like ur soil there is too bad....shud drain pretty good...



[G gnome]

Sounds on point, thanks I needed a second opinion.
STR8

I deal in facts my friend.....viable solutions for the indoor grower!!! Haha



[str8smokn]

Heres the rubber sealant shit i had in mind to line ur floor with.....
http://www.rubbersealtm.com/product...MIpfafhMH91AIVDnF-Ch2kRAO7EAQYBCABEgJyAvD_BwE

Right now they are both lined with Pond liner( Goodyear) rubber
STR8



[G gnome]

Right now they are both lined with Pond liner( Goodyear) rubber
STR8

There ya go....thats just as well.

When u put in ur floor drain make sure u mortise out the subfloor to accommodate the height of the drain and install it in the lowest part of the floor



[str8smokn]

I deal in facts my friend.....viable solutions for the indoor grower!!! Haha

I know you do my friend.
STR8



[G gnome]

Anything to add @stonestacker ?

Think it'll work?

a lil old man wisdom never hurts haha



[str8smokn]

Here's how they did my septic lines on my house when I had to add more.

STR8



[stonestacker]

You boys have it under control. This old man is going to bed.
Oh I would have rented the ditch witch first lol.



[str8smokn]

Just do it on a smaller scale, instead of half a 4' pipe , I would use a 4" pipe cut in half and just lay it on the ground floor . Then back fill.
STR8



[stonestacker]

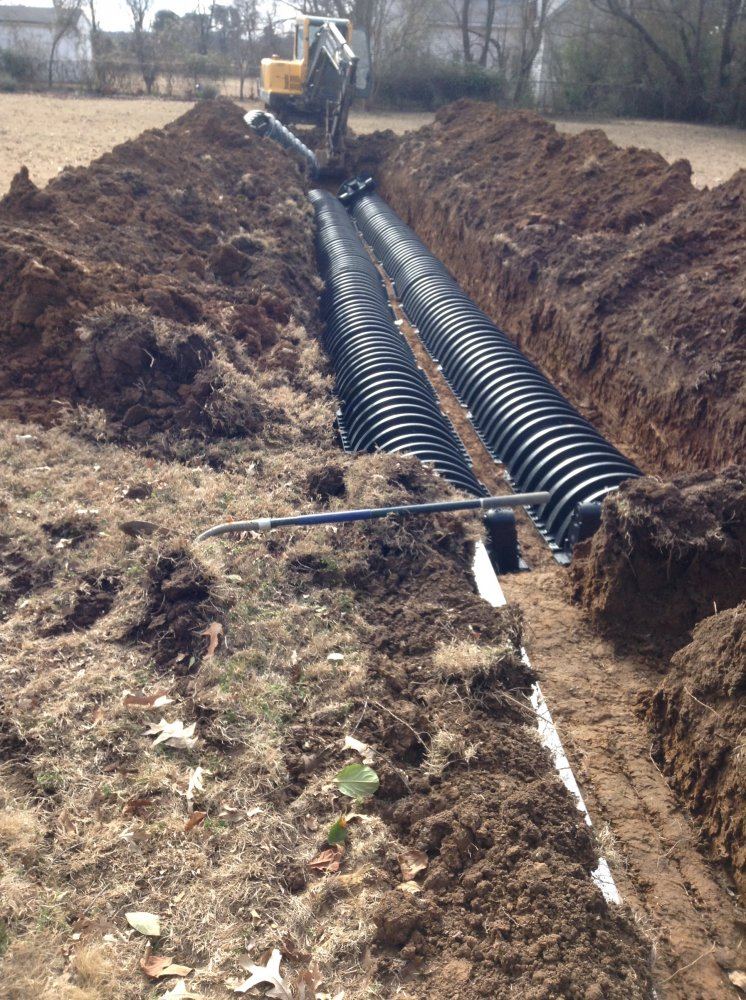

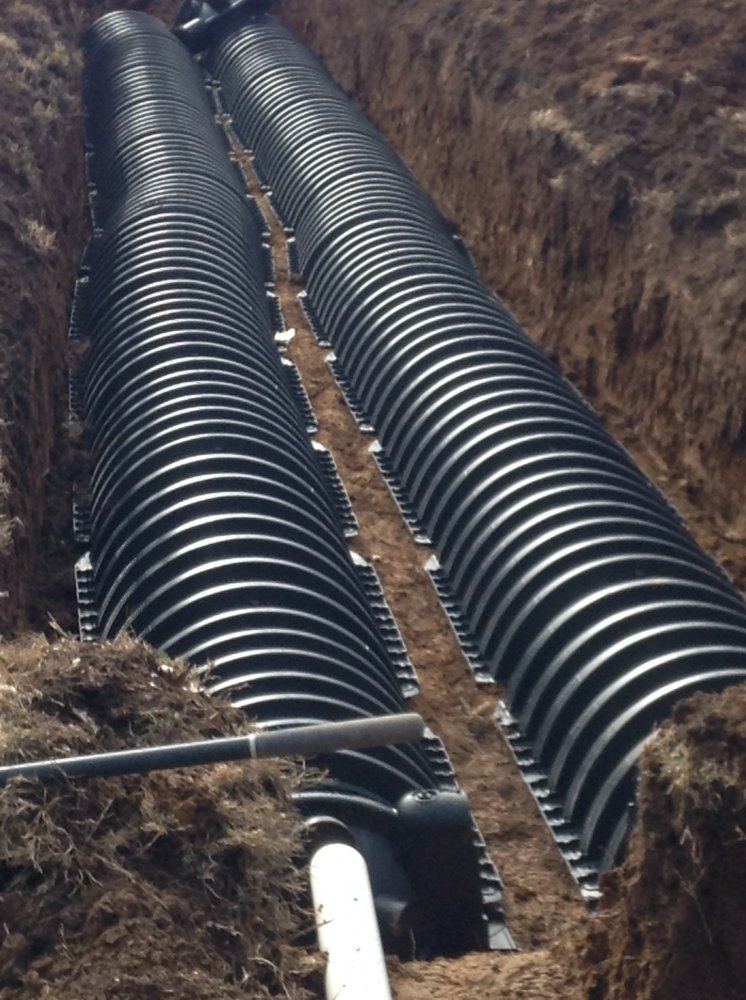

Here's how they did my septic lines on my house when I had to add more.
View attachment 718633
View attachment 718632

STR8

That's a new one on me. We still build headers and bleeders.



[str8smokn]

You boys have it under control. This old man is going to bed.
Oh I would have rented the ditch witch first lol.

Hehe, I had to try.
STR8



[str8smokn]

That's a new one on me. We still build headers and bleeders.

That's what is coming off of the tank itself, those are the leach lines. There's 200' of it I had to add.
STR8



[G gnome]

You boys have it under control. This old man is going to bed.
Oh I would have rented the ditch witch first lol.

Hehe, I had to try.
STR8

Better man than i.......wudda got the ditchwitch from the outset as well haha...hell, i wud use the damn thing to break up the dirt for my pit since i had the thing anyway haha....actually i done it b4..... start at the french drain an go back n forth w the machine to break up the dirt



[G gnome]

That's what is coming off of the tank itself, those are the leach lines. There's 200' of it I had to add.
STR8

Did u put an addition on the house or did the septic fail an inspection?



[G gnome]

Here's how they did my septic lines on my house when I had to add more.
View attachment 718633
View attachment 718632

STR8

That def seems more expensive and labor intensive than a pit full of rock tho, str8....



[str8smokn]

Did u put an addition on the house or did the septic fail an inspection?

I bought the house with a new Addition added on and they didn't upsize when they added a master bath and laundry room.
That's what is called for by code now, no more ditch with rock in it.
That's what my old lines are.
STR8
